発光色：白色(AW) 2025年12月26日生産終了→後継機：白色(DW)

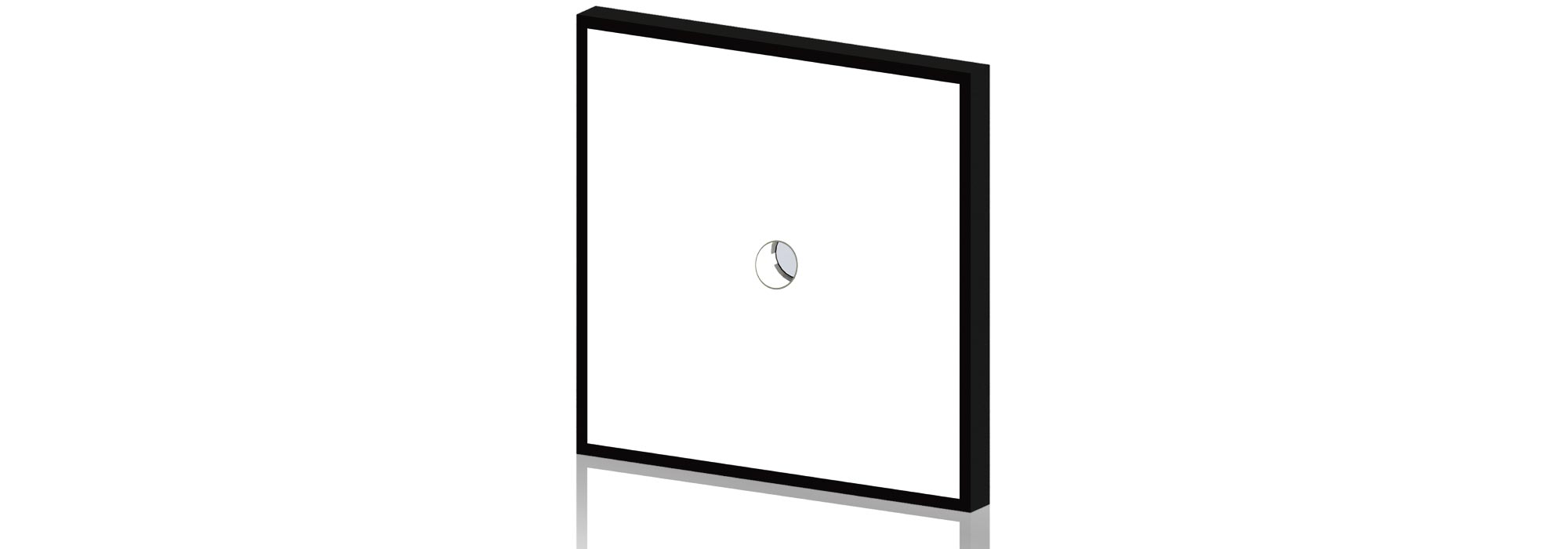

穴あき大型面照明 IFPA-Dシリーズ
カメラ撮像対応の大型、均一面発光照明
発行面サイズは200mm×100mmから500mm×500mmまで100mm単位で作成可能。
レンズサイズに合わせ開口サイズは発行面中心にφ35mmとφ55mmの2種類を用意。
開口位置やコネクタ位置の変更など細かなカスタマイズにも対応。

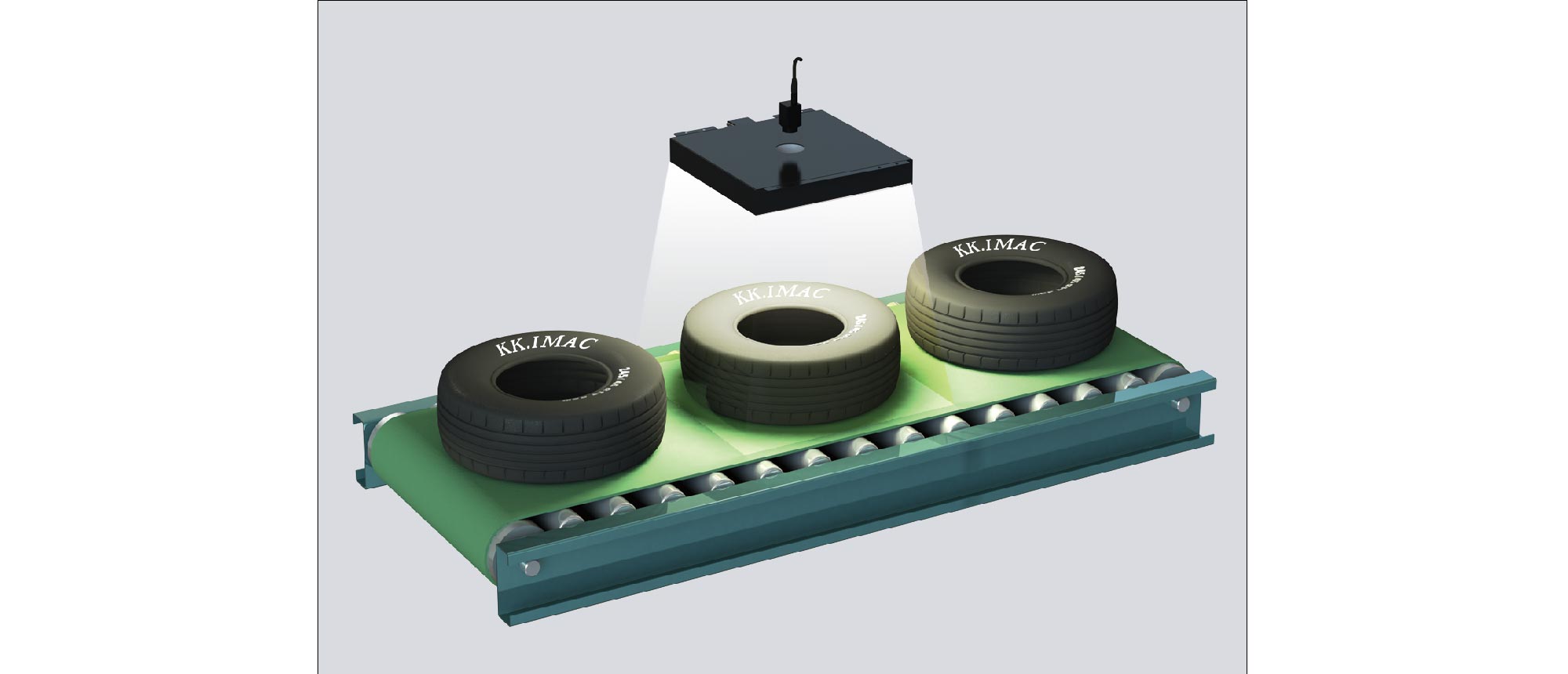

サンプル：大型ワークの外観検査

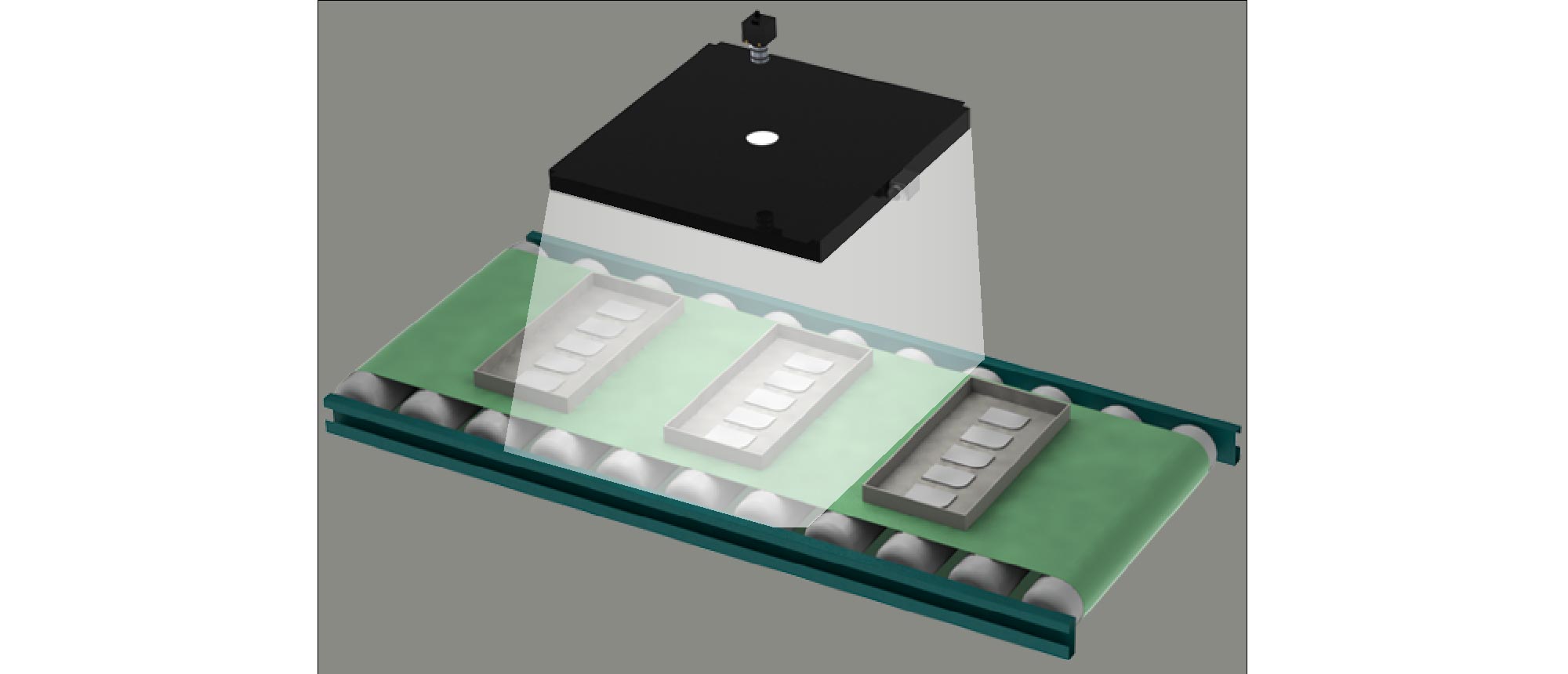

サンプル：トレー内の数量検査

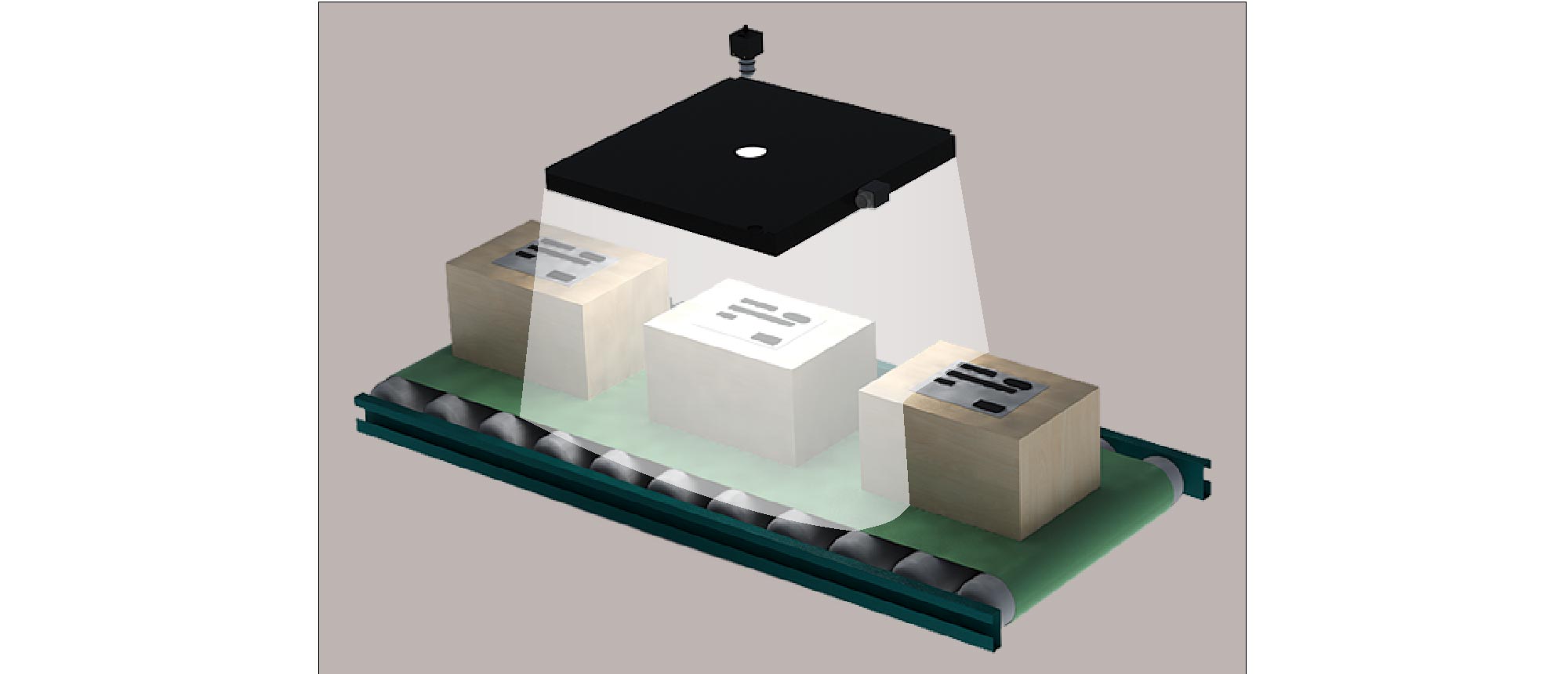

サンプル：大型ワークの印字・刻印検査

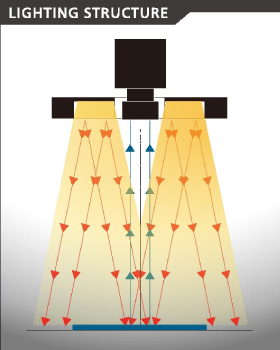

Lighting structure
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC24V | IFPA-100/100RHV-35D | 赤[R](635nm) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100BHV-35D | 青[B](465nm) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100AWHV-35D | 白[AW](4900K) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100RHV-55D | 赤[R](635nm) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100BHV-55D | 青[B](465nm) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100AWHV-55D | 白[AW](4900K) | 5W | DC24V |
|
|
|
| DC24V | IFPA-200/100RHV-35D | 赤[R](635nm) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100BHV-35D | 青[B](465nm) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100AWHV-35D | 白[AW](4900K) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100RHV-55D | 赤[R](635nm) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100BHV-55D | 青[B](465nm) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100AWHV-55D | 白[AW](4900K) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/200RHV-35D | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200BHV-35D | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200AWHV-35D | 白[AW](4900K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200RHV-55D | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200BHV-55D | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200AWHV-55D | 白[AW](4900K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-300/100RHV-35D | 赤[R](635nm) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100BHV-35D | 青[B](465nm) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100AWHV-35D | 白[AW](4900K) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100RHV-55D | 赤[R](635nm) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100BHV-55D | 青[B](465nm) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100AWHV-55D | 白[AW](4900K) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/200RHV-35D | 青[R](465nm) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200BHV-35D | 青[B](465nm) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200AWHV-35D | 白[AW](4900K) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200RHV-55D | 赤[R](635nm) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200BHV-55D | 青[B](465nm) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200AWHV-55D | 白[AW](4900K) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/300RHV-35D | 赤[R](635nm) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300BHV-35D | 青[B](465nm) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300AWHV-35D | 白[AW](4900K) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300RHV-55D | 赤[R](635nm) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300BHV-55D | 青[B](465nm) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300AWHV-55D | 白[AW](4900K) | 85W | DC24V |
|
|
|
| DC24V | IFPA-400/100RHV-35D | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/100BHV-35D | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/100AWHV-35D | 白[AW](4900K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/100RHV-55D | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/100BHV-55D | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/100AWHV-55D | 白[AW](4900K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-400/200RHV-35D | 赤[R](635nm) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/200BHV-35D | 青[B](465nm) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/200AWHV-35D | 白[AW](4900K) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/200RHV-55D | 赤[R](635nm) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/200BHV-55D | 青[B](465nm) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/200AWHV-55D | 白[AW](4900K) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/300RHV-35D | 青[R](465nm) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300BHV-35D | 青[B](465nm) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300AWHV-35D | 白[AW](4900K) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300RHV-55D | 赤[R](635nm) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300BHV-55D | 青[B](465nm) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300AWHV-55D | 白[AW](4900K) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/400RHV-35D | 赤[R](635nm) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400BHV-35D | 青[B](465nm) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400AWHV-35D | 白[AW](4900K) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400RHV-55D | 赤[R](635nm) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400BHV-55D | 青[B](465nm) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400AWHV-55D | 白[AW](4900K) | 155W | DC24V |
|
|
|
| DC24V | IFPA-500/100RHV-35D | 赤[R](635nm) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/100BHV-35D | 青[B](465nm) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/100AWHV-35D | 白[AW](4900K) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/100RHV-55D | 赤[R](635nm) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/100BHV-55D | 青[B](465nm) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/100AWHV-55D | 白[AW](4900K) | 45W | DC24V |
|
|
|
| DC24V | IFPA-500/200RHV-35D | 赤[R](635nm) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/200BHV-35D | 青[B](465nm) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/200AWHV-35D | 白[AW](4900K) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/200RHV-55D | 赤[R](635nm) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/200BHV-55D | 青[B](465nm) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/200AWHV-55D | 白[AW](4900K) | 95W | DC24V |
|
|
|
| DC24V | IFPA-500/300RHV-35D | 赤[R](635nm) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300BHV-35D | 青[B](465nm) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300AWHV-35D | 白[AW](4900K) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300RHV-55D | 赤[R](635nm) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300BHV-55D | 青[B](465nm) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300AWHV-55D | 白[AW](4900K) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/400RHV-35D | 赤[R](635nm) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/400BHV-35D | 青[B](465nm) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/400AWHV-35D | 白[AW](4900K) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/400RHV-55D | 赤[R](635nm) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/400BHV-55D | 青[B](465nm) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/400AWHV-55D | 白[AW](4900K) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/500RHV-35D | 赤[R](635nm) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500BHV-35D | 青[B](465nm) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500AWHV-35D | 白[AW](4900K) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500RHV-55D | 赤[R](635nm) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500BHV-55D | 青[B](465nm) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500AWHV-55D | 白[AW](4900K) | 245W | DC24V |
|
|
|
| DC24V | IFPA-100/100DWHV-35D | 白[DW](5000K) | 5W | DC24V |
|
|
|
| DC24V | IFPA-100/100DWHV-55D | 白[DW](5000K) | 5W | DC24V |
|
|
|
| DC24V | IFPA-200/100DWHV-35D | 白[DW](5000K) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/100DWHV-55D | 白[DW](5000K) | 15W | DC24V |
|
|
|
| DC24V | IFPA-200/200DWHV-35D | 白[DW](5000K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-200/200DWHV-55D | 白[DW](5000K) | 35W | DC24V |
|
|
|
| DC24V | IFPA-300/100DWHV-35D | 白[DW](5000K) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/100DWHV-55D | 白[DW](5000K) | 25W | DC24V |
|
|
|
| DC24V | IFPA-300/200DWHV-35D | 白[DW](5000K) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/200DWHV-55D | 白[DW](5000K) | 55W | DC24V |
|
|
|
| DC24V | IFPA-300/300DWHV-35D | 白[DW](5000K) | 85W | DC24V |
|
|
|
| DC24V | IFPA-300/300DWHV-55D | 白[DW](5000K) | 85W | DC24V |
|
|
|
| DC24V | IFPA-400/100DWHV-35D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-400/100DWHV-55D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-400/200DWHV-35D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-400/200DWHV-55D | 白[DW](5000K) | 75W | DC24V |
|
|
|
| DC24V | IFPA-400/300DWHV-35D | 白[DW](5000K) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/300DWHV-55D | 白[DW](5000K) | 115W | DC24V |
|
|
|
| DC24V | IFPA-400/400DWHV-35D | 白[DW](5000K) | 155W | DC24V |
|
|
|
| DC24V | IFPA-400/400DWHV-55D | 白[DW](5000K) | 155W | DC24V |
|
|
|
| DC24V | IFPA-500/100DWHV-35D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/100DWHV-55D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/200DWHV-35D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/200DWHV-55D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/300DWHV-35D | 白[DW](5000K) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/300DWHV-55D | 白[DW](5000K) | 145W | DC24V |
|
|
|
| DC24V | IFPA-500/400DWHV-35D | 白[DW](5000K) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/400DWHV-55D | 白[DW](5000K) | 195W | DC24V |
|
|
|
| DC24V | IFPA-500/500DWHV-35D | 白[DW](5000K) | 245W | DC24V |
|
|
|
| DC24V | IFPA-500/500DWHV-55D | 白[DW](5000K) | 245W | DC24V |
|
|
