Leimac | Optera

We succeeded in developing a portable spectroscopic detector for biofluorescent reagents.

Optera Products

Lighting Equipment power supply OPT-MS01A

Power supply device which is specified for the LED unit with a current display monitor.
The measurement can also be performed using our Optical Power Meter (OPT-MSD01).
Optical power meter OPT-MSD01

A light receiving detection device having light receiving sensitivity from ultraviolet (190 nm) to visible light (550 nm). It can correspond to measurement environment drift and real-time comparison with reference sample / calculation by using two heads.
*We can prepare a wide range of wavelength types from ultraviolet (190 nm) to infrared (1100 nm).
ultraviolet LED unit OPT-MSLxxx

We have a lineup of 255 nm – 365 nm LED units. *It can be combined with an optional condenser lens, optical fiber, optical filter.
（255・260・270・280・290・300・310・320・330・340・350・365nm）
UV bandpass filter BPFxxx

We have a lineup of 255 nm – 365 nm LED units.
It is a 10 × 10 mm high transmittance bandpass filter which is mainly attached to the light receiving side.
We have every wavelength available in stock, and can take order of different sizes as well.
Fiber multi-channel light source OPT-MSF08

Up to 8 ultraviolet LED units ““OPT-Lxx”” can be connected.It has a built-in monitoring system that can see the projection wavelength in real time and is capable of the current wavelength control that creates selectable light projection waveforms.
Spectrometer display monitor sys

Measurement results from CCD and PD are calculated and displayed on the liquid crystal touch panel monitor.
It is also possible to superimpose spectral waveforms and actual measurement values of pd on the object image captured by the camera. It can save data and can also be built as a logger of long experiments. Please use it as an operation / display monitor for the dedicated spectrometer.
PMT (Photomultiplier Tube) photodetector OPT-PMTxx

It is a light detection device using our high sensitivity photosensor, “Photomaru”.
It detects 230 to 870 nm ultraviolet to near-infrared light with high sensitivity.

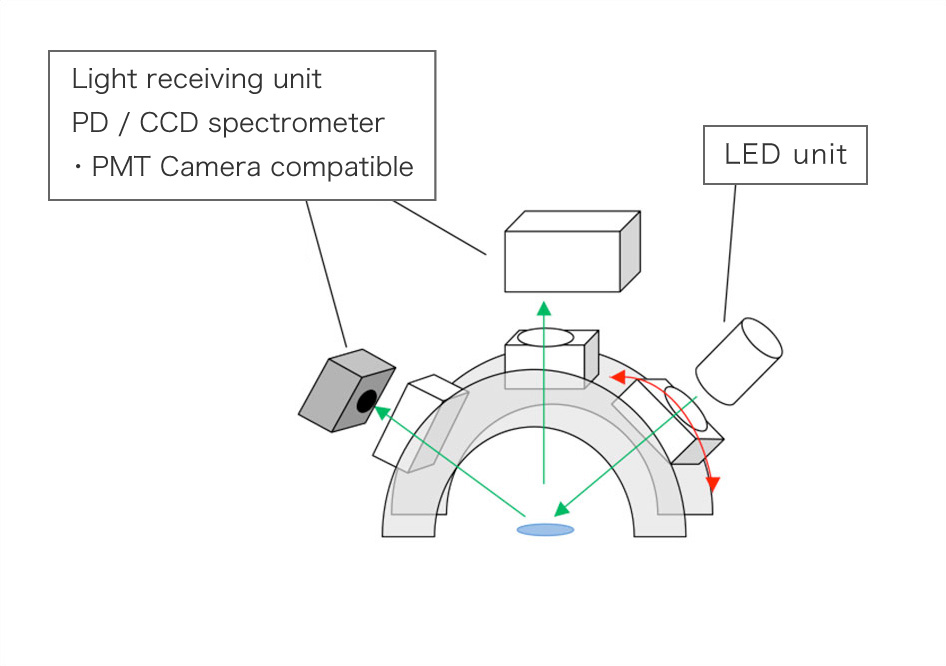

Spectral Detection Experiment Framework

By combining our “MSD01” optical power meter with wavelength-specific LED units and the LED lighting power supply “MS01A,” it is possible to conduct spectral detection experiments on substances contained in liquids.
