発光色：白色(AW) 2025年12月26日生産終了→後継機：白色(DW)

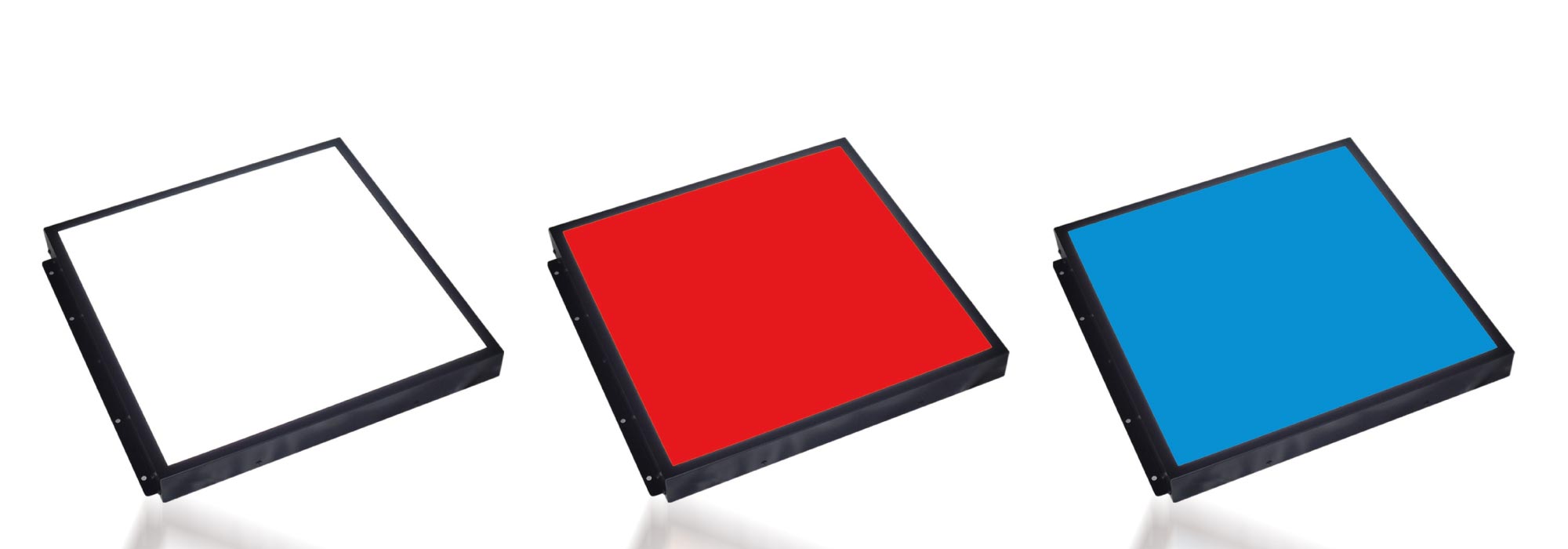

大型面照明 IFPAシリーズ
大型・均一面発光照明
パワーLED採用、大型・高輝度の均一発光照明
ペットボトルなどの大型ワークの外観検査などに最適。
大型な蛍光灯装置の置き換えも可能。
特殊構造によりエアー取り付け不要、ファンレスの自然空冷式。
100mm×100mm基板を使用しているため、この寸法の倍数でのサイズであれば他サイズも製作可能。
効果

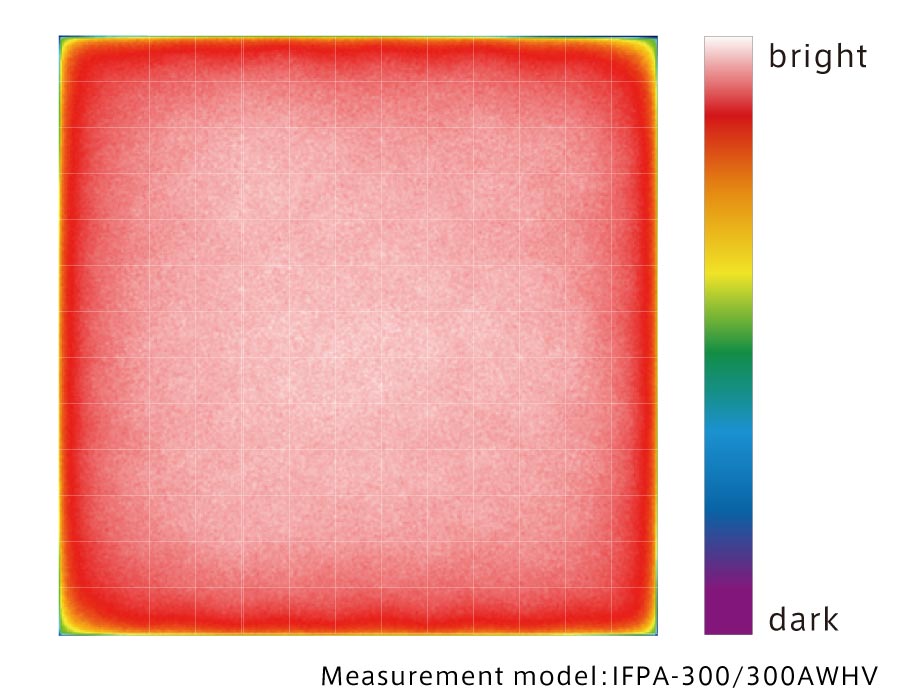

輝度分布図（参考値）
発光面の外側約50mm除くエリアで10%以内の均一性になっています。

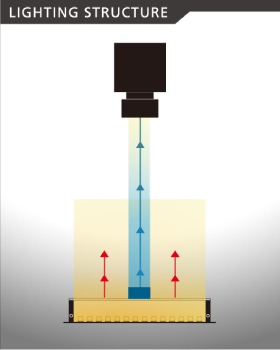

Lighting structure
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC24V | IFPA-100/100RHV | 赤[R](635nm) | 10W | DC24V |
|
|
|
| DC24V | IFPA-100/100BHV | 青[B](465nm) | 10W | DC24V |
|
|
|
| DC24V | IFPA-100/100AWHV | 白[AW](TBD) | 10W | DC24V |
|
|
|
| DC24V | IFPA-200/200RHV | 赤[R](635nm) | 40W | DC24V |
|
|
|
| DC24V | IFPA-200/200BHV | 青[B](465nm) | 40W | DC24V |
|
|
|
| DC24V | IFPA-200/200AWHV | 白[AW](TBD) | 40W | DC24V |
|
|
|
| DC24V | IFPA-300/300RHV | 赤[R](635nm) | 90W | DC24V |
|
|
|
| DC24V | IFPA-300/300BHV | 青[B](465nm) | 90W | DC24V |
|
|
|
| DC24V | IFPA-300/300AWHV | 白[AW](TBD) | 90W | DC24V |
|
|
|
| DC24V | IFPA-400/400RHV | 赤[R](635nm) | 160W | DC24V |
|
|
|
| DC24V | IFPA-400/400BHV | 青[B](465nm) | 160W | DC24V |
|
|
|
| DC24V | IFPA-400/400AWHV | 白[AW](TBD) | 160W | DC24V |
|
|
|
| DC24V | IFPA-200/100RHV | 赤[R](635nm) | 20W | DC24V |
|
|
|
| DC24V | IFPA-200/100BHV | 青[B](465nm) | 20W | DC24V |
|
|
|
| DC24V | IFPA-200/100AWHV | 白[AW](TBD) | 20W | DC24V |
|
|
|
| DC24V | IFPA-300/100RHV | 赤[R](635nm) | 30W | DC24V |
|
|
|
| DC24V | IFPA-300/100BHV | 青[B](465nm) | 30W | DC24V |
|
|
|
| DC24V | IFPA-300/100AWHV | 白[AW](TBD) | 30W | DC24V |
|
|
|
| DC24V | IFPA-300/200RHV | 赤[R](635nm) | 60W | DC24V |
|
|
|
| DC24V | IFPA-300/200BHV | 青[B](465nm) | 60W | DC24V |
|
|
|
| DC24V | IFPA-300/200AWHV | 白[AW](TBD) | 60W | DC24V |
|
|
|
| DC24V | IFPA-400/100RHV | 赤[R](635nm) | 40W | DC24V |
|
|
|
| DC24V | IFPA-400/100BHV | 青[B](465nm) | 40W | DC24V |
|
|
|
| DC24V | IFPA-400/100AWHV | 白[AW](TBD) | 40W | DC24V |
|
|
|
| DC24V | IFPA-400/200RHV | 赤[R](635nm) | 80W | DC24V |
|
|
|
| DC24V | IFPA-400/200BHV | 青[B](465nm) | 80W | DC24V |
|
|
|
| DC24V | IFPA-400/200AWHV | 白[AW](TBD) | 80W | DC24V |
|
|
|
| DC24V | IFPA-400/300RHV | 赤[R](635nm) | 120W | DC24V |
|
|
|
| DC24V | IFPA-400/300BHV | 青[B](465nm) | 120W | DC24V |
|
|
|
| DC24V | IFPA-400/300AWHV | 白[AW](TBD) | 120W | DC24V |
|
|
|
| DC24V | IFPA-100/100DWHV | 白[DW](5000K) | 10W | DC24V |
|
|
|
| DC24V | IFPA-200/200DWHV | 白[DW](5000K) | 40W | DC24V |
|
|
|
| DC24V | IFPA-300/300DWHV | 白[DW](5000K) | 90W | DC24V |
|
|
|
| DC24V | IFPA-400/400DWHV | 白[DW](5000K) | 160W | DC24V |
|
|
|
| DC24V | IFPA-500/500DWHV | 白[DW](5000K) | 250W | DC24V |
|
|
|
| DC24V | IFPA-200/100DWHV | 白[DW](5000K) | 20W | DC24V |
|
|
|
| DC24V | IFPA-300/100DWHV | 白[DW](5000K) | 30W | DC24V |
|
|
|
| DC24V | IFPA-300/200DWHV | 白[DW](5000K) | 60W | DC24V |
|
|
|
| DC24V | IFPA-400/100DWHV | 白[DW](5000K) | 40W | DC24V |
|
|
|
| DC24V | IFPA-400/200DWHV | 白[DW](5000K) | 80W | DC24V |
|
|
|
| DC24V | IFPA-400/300DWHV | 白[DW](5000K) | 120W | DC24V |
|
|
|
| DC24V | IFPA-500/100DWHV | 白[DW](5000K) | 50W | DC24V |
|
|
|
| DC24V | IFPA-500/200DWHV | 白[DW](5000K) | 100W | DC24V |
|
|
|
| DC24V | IFPA-500/300DWHV | 白[DW](5000K) | 150W | DC24V |
|
|
|
| DC24V | IFPA-500/400DWHV | 白[DW](5000K) | 200W | DC24V |
|
|
|
| DC24V | IFPA-500/500RHV | 赤[R](635nm) | 250W | DC24V |
|
|
|
| DC24V | IFPA-500/500BHV | 青[B](465nm) | 250W | DC24V |
|
|
|
| DC24V | IFPA-500/100RHV | 赤[R](635nm) | 50W | DC24V |
|
|
|
| DC24V | IFPA-500/100BHV | 青[B](465nm) | 50W | DC24V |
|
|
|
| DC24V | IFPA-500/200RHV | 赤[R](635nm) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/200BHV | 青[B](465nm) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/300RHV | 赤[R](635nm) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/300BHV | 青[B](465nm) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/400BHV | 青[B](465nm) | TBD | DC24V |
|
|
|
| DC24V | IFPA-500/400RHV | 赤[R](635nm) | 200W | DC24V |
|
|
