マルチアングル照明 IMARシリーズ
ハイアングルからローアングルまでをカバーする汎用リング照明。

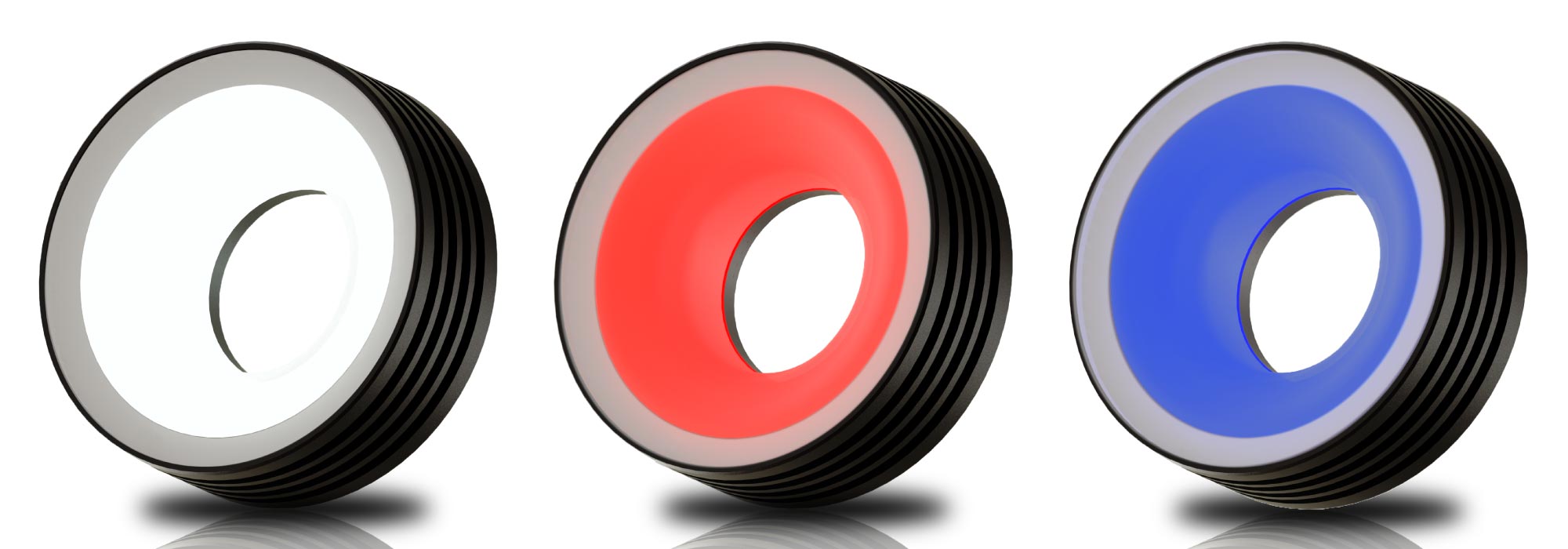

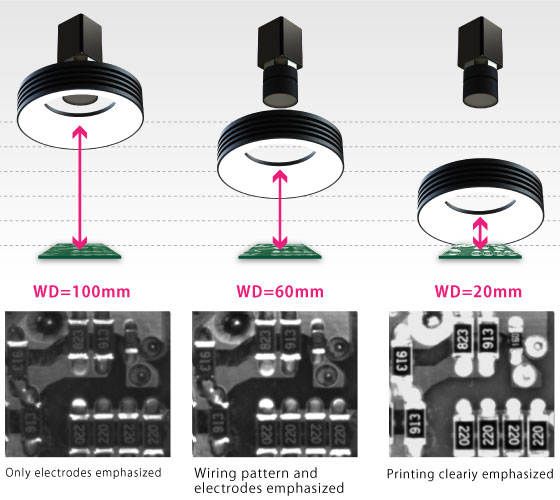

中抜けを抑制した光学設計となっており、ポジション調整に応じて外観検査・印字検査・欠陥検査に適用可能。
高速ラインや高倍率撮像にも活用可能な高照度拡散型。
従来比で明るさを向上

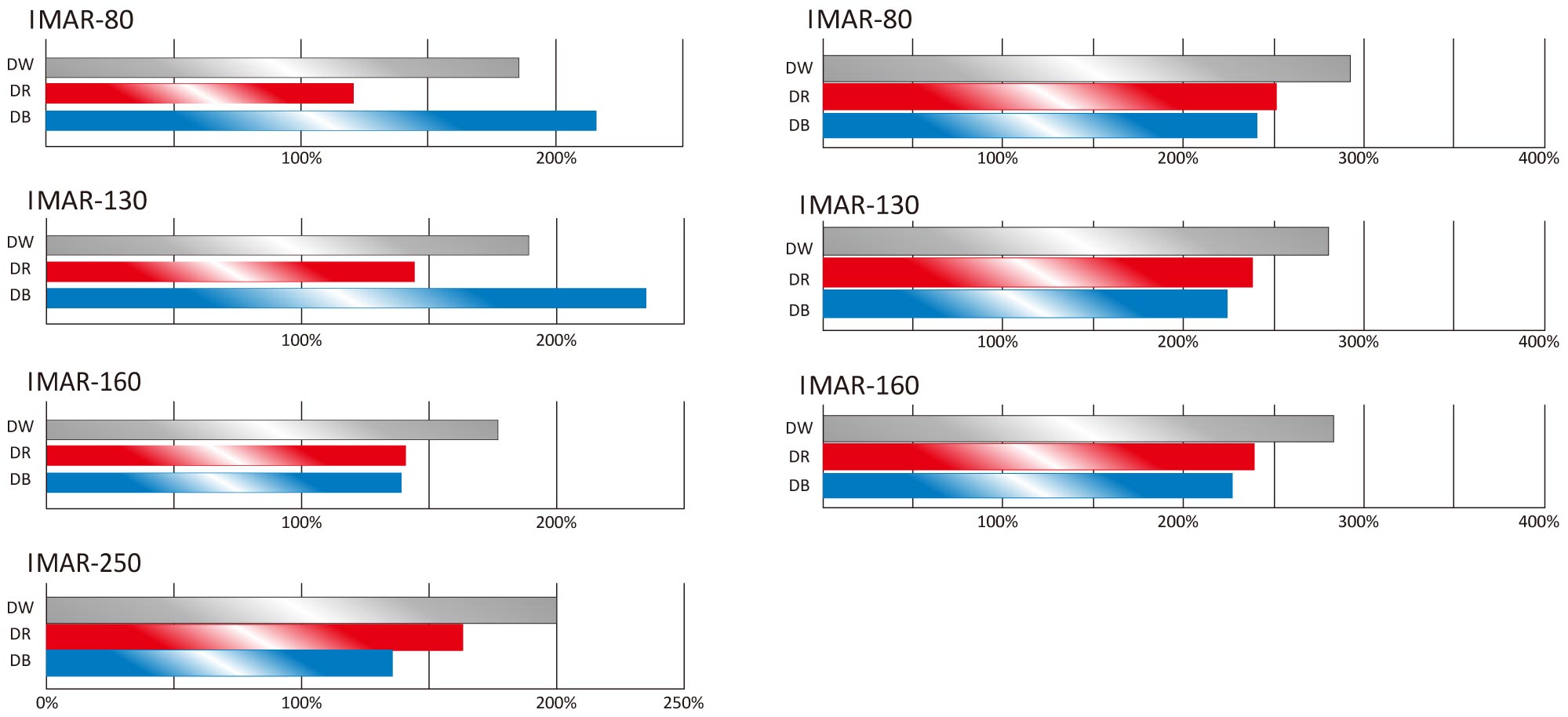

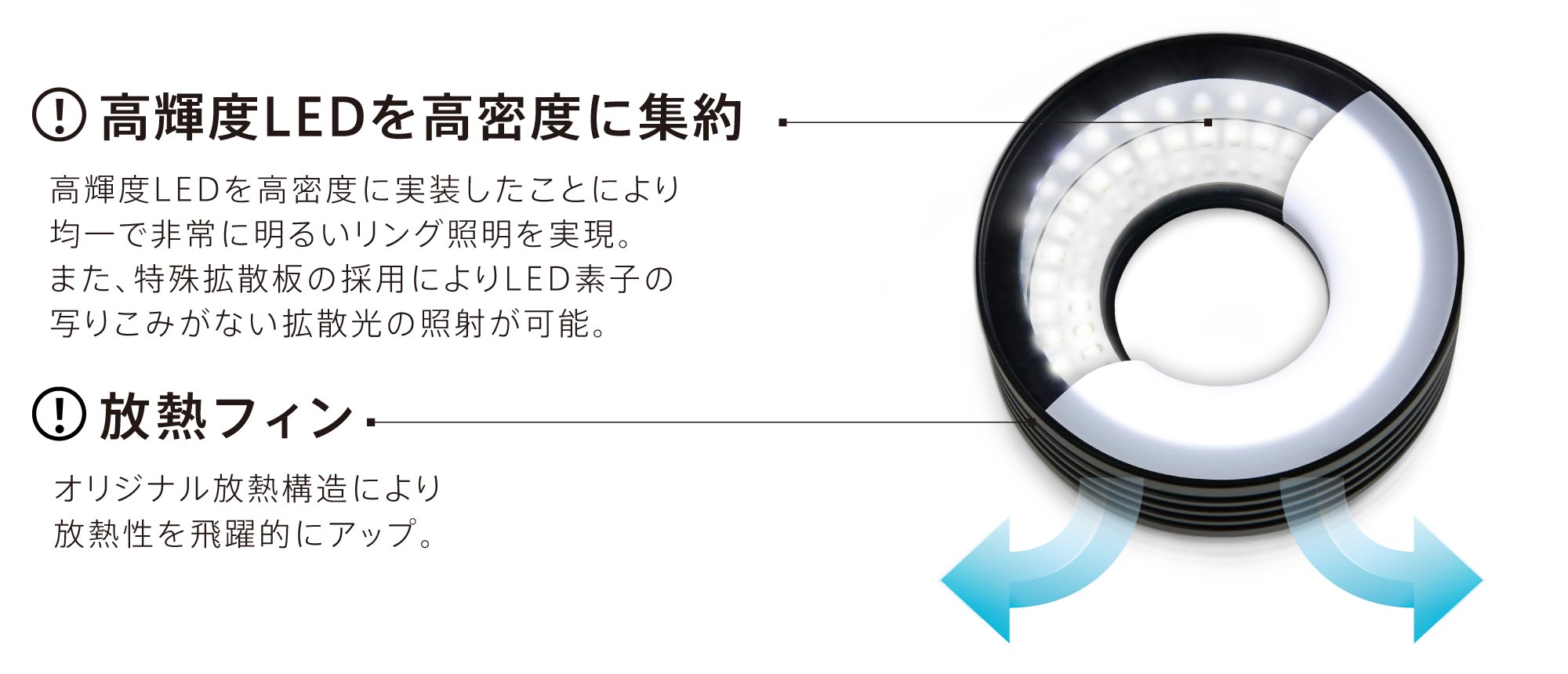

高輝度LED素子を採用し、従来品比で約1.2～2.3倍の明るさを確保。
オーバードライブ時は、定常発光比で約2.2～3.6倍の高輝度発光に対応。
撮像例
IMAR-80DW
こだわりの機能特性

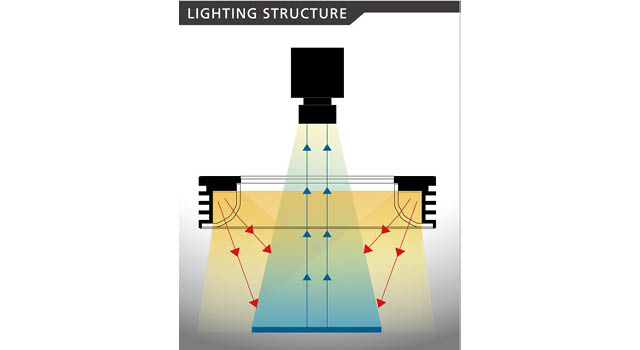

Lighting structure
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC12V | IMAR-80IR-850 | IR(850nm) | - | DC12V |
|
|
|
| DC12V | IMAR-80IR-950 | IR(950nm) | 7W | DC12V |
|
|
|
| DC12V | IMAR-55IR-850 | IR(850nm) | - | DC12V |
|
|
|
| DC12V | IMAR-55IR-950 | IR(950nm) | 4.2W | DC12V |
|
|
|
| DC24V | IMAR-80IR-850HV | IR(850nm) | - | DC24V |
|
|
|
| DC24V | IMAR-80IR-950HV | IR(950nm) | 7W | DC24V |
|
|
|
| DC24V | IMAR-55IR-850HV | IR(850nm) | - | DC24V |
|
|
|
| DC24V | IMAR-55IR-950HV | IR(950nm) | 4.2W | DC24V |
|
|
|
| DC12V | IMAR-80DW | 白[DW](7000K) | 11W | DC12V |
|
|
|
| DC12V | IMAR-80DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-80DB | 青[DB](465nm) | 10W | DC12V |
|
|
|
| DC12V | IMAR-130IR-850 | IR(850nm) | 12W | DC12V |
|
|
|
| DC12V | IMAR-130DW | 白[DW](7000K) | 20W | DC12V |
|
|
|
| DC12V | IMAR-130DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-130DB | 青[DB](465nm) | 18W | DC12V |
|
|
|
| DC12V | IMAR-55DW | 白[DW](7000K) | 6W | DC12V |
|
|
|
| DC12V | IMAR-55DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-55DB | 青[DB](465nm) | 5.5W | DC12V |
|
|
|
| DC12V | IMAR-200IR-850 | IR(850nm) | 19W | DC12V |
|
|
|
| DC12V | IMAR-200DW | 白[DW](7000K) | 30W | DC12V |
|
|
|
| DC12V | IMAR-200DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-200DB | 青[DB](465nm) | 29W | DC12V |
|
|
|
| DC12V | IMAR-110IR-850 | IR(850nm) | 9.5W | DC12V |
|
|
|
| DC12V | IMAR-110DW | 白[DW](7000K) | 17W | DC12V |
|
|
|
| DC12V | IMAR-110DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-110DB | 青[DB](465nm) | 15W | DC12V |
|
|
|
| DC12V | IMAR-160IR-850 | IR(850nm) | 14W | DC12V |
|
|
|
| DC12V | IMAR-160DW | 白[DW](7000K) | 25W | DC12V |
|
|
|
| DC12V | IMAR-160DR | 赤[DR](630nm) | - | DC12V |
|
|
|
| DC12V | IMAR-160DB | 青[DB](465nm) | 23W | DC12V |
|
|
|
| DC24V | IMAR-80DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-80DRHV | 赤[DR](630nm) | 10W | DC24V |
|
|
|
| DC24V | IMAR-80DBHV | 青[DB](470nm) | 10W | DC24V |
|
|
|
| DC24V | IMAR-130IR-850HV | IR(850nm) | 12W | DC24V |
|
|
|
| DC24V | IMAR-130DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-130DRHV | 赤[DR](630nm) | 18W | DC24V |
|
|
|
| DC24V | IMAR-130DBHV | 青[DB](470nm) | 18W | DC24V |
|
|
|
| DC24V | IMAR-55DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-55DRHV | 赤[DR](630nm) | 5W | DC24V |
|
|
|
| DC24V | IMAR-55DBHV | 青[DB](470nm) | 5.5W | DC24V |
|
|
|
| DC24V | IMAR-200IR-850HV | IR(850nm) | 19W | DC24V |
|
|
|
| DC24V | IMAR-200DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-200DRHV | 赤[DR](630nm) | 29W | DC24V |
|
|
|
| DC24V | IMAR-200DBHV | 青[DB](470nm) | 29W | DC24V |
|
|
|
| DC24V | IMAR-110IR-850HV | IR(850nm) | 9.5W | DC24V |
|
|
|
| DC24V | IMAR-110DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-110DRHV | 赤[DR](630nm) | 15W | DC24V |
|
|
|
| DC24V | IMAR-110DBHV | 青[DB](470nm) | 15W | DC24V |
|
|
|
| DC24V | IMAR-160IR-850HV | IR(850nm) | 14W | DC24V |
|
|
|
| DC24V | IMAR-160DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-160DRHV | 赤[DR](630nm) | 23W | DC24V |
|
|
|
| DC24V | IMAR-160DBHV | 青[DB](470nm) | 23W | DC24V |
|
|
|
| DC24V | IMAR-250IR-850HV | IR(850nm) | 30W | DC24V |
|
|
|
| DC24V | IMAR-250DWHV | 白[DW](TBD) | - | DC24V |
|
|
|
| DC24V | IMAR-250DRHV | 赤[DR](630nm) | 40W | DC24V |
|
|
|
| DC24V | IMAR-250DBHV | 青[DB](470nm) | 40W | DC24V |
|
|
|
| DC12V | IMAR-90DW-WP | 白[DW](470nm) | 11W | DC12V |
|
|
|
| DC12V | IMAR-90DR-WP | 赤[DR](470nm) | 10W | DC12V |
|
|
|
| DC12V | IMAR-90DB-WP | 青[DB](470nm) | 10W | DC12V |
|
|
|
| DC12V | IMAR-140DW-WP | 白[DW](470nm) | 20W | DC12V |
|
|
|
| DC12V | IMAR-140DR-WP | 赤[DR](470nm) | 18W | DC12V |
|
|
|
| DC12V | IMAR-140DB-WP | 青[DB](470nm) | 18W | DC12V |
|
|
|
| DC24V | IMAR-90DWHV-WP | 白[DW](470nm) | 11W | DC24V |
|
|
|
| DC24V | IMAR-90DRHV-WP | 赤[DR](470nm) | 10W | DC24V |
|
|
|
| DC24V | IMAR-90DBHV-WP | 青[DB](470nm) | 10W | DC24V |
|
|
|
| DC24V | IMAR-140DWHV-WP | 白[DW](470nm) | 20W | DC24V |
|
|
|
| DC24V | IMAR-140DRHV-WP | 赤[DR](470nm) | 18W | DC24V |
|
|
|
| DC24V | IMAR-140DBHV-WP | 青[DB](470nm) | 18W | DC24V |
|
|
|
| DC12V RGB | IMAR-80RGB |  (R:635nm / G:525nm / B:465nm)
| R:2.2W / G:2.2W / B:2.2W | DC12V |
|
|
|
| DC24V RGB | IMAR-80RGBHV | (R:635nm / G:525nm / B:465nm)
| R:2.2W / G:2.2W / B:2.2W | DC24V |
|
|
|
| DC12V RGB | IMAR-110RGB | (R:635nm / G:525nm / B:465nm)
| R:3.4W / G:3.4W / B:3.4W | DC12V |
|
|
|
| DC24V RGB | IMAR-110RGBHV | (R:635nm / G:525nm / B:465nm)
| R:3.4W / G:3.4W / B:3.4W | DC24V |
|
|
|
| DC12V RGB | IMAR-130RGB | (R:635nm / G:525nm / B:465nm)
| R:4.4W / G:4.4W / B:4.4W | DC12V |
|
|
|
| DC24V RGB | IMAR-130RGBHV | (R:635nm / G:525nm / B:465nm)
| R:4.4W / G:4.4W / B:4.4W | DC24V |
|
|
|
| DC12V MLTC | IMAR-170MLTC-7ch |  (UV:405nm / B:465nm / G:525nm / Am:590nm / R:635nm / FR:740nm / IR:850nm)
| 22.7W | DC12V |
|
|
|
| DC12V | IMAR-80DG | 緑[DG](525nm) | 11W | DC12V |
|
|
|
| DC12V | IMAR-130DG | 緑[DG](525nm) | 19W | DC12V |
|
|
|
| DC12V | IMAR-55DG | 緑[DG](525nm) | 5W | DC12V |
|
|
|
| DC12V | IMAR-200DG | 緑[DG](525nm) | 30W | DC12V |
|
|
|
| DC12V | IMAR-110DG | 緑[DG](525nm) | 16W | DC12V |
|
|
|
| DC12V | IMAR-160DG | 緑[DG](525nm) | 25W | DC12V |
|
|
|
| DC24V | IMAR-80DGHV | 緑[DG](525nm) | 11W | DC24V |
|
|
|
| DC24V | IMAR-130DGHV | 緑[DG](525nm) | 19W | DC24V |
|
|
|
| DC24V | IMAR-55DGHV | 緑[DG](525nm) | 5W | DC24V |
|
|
|
| DC24V | IMAR-200DGHV | 緑[DG](525nm) | 30W | DC24V |
|
|
|
| DC24V | IMAR-110DGHV | 緑[DG](525nm) | 16W | DC24V |
|
|
|
| DC24V | IMAR-160DGHV | 緑[DG](525nm) | 25W | DC24V |
|
|
|
| DC24V | IMAR-250DGHV | 緑[DG](525nm) | 39W | DC24V |
|
|
|
| DC12V | IMAR-90DG-WP | 緑[DG](525nm) | 11W | DC12V |
|
|
|
| DC12V | IMAR-140DG-WP | 緑[DG](525nm) | 19W | DC12V |
|
|
|
| DC24V | IMAR-90DGHV-WP | 緑[DG](525nm) | 11W | DC24V |
|
|
|
| DC24V | IMAR-140DGHV-WP | 緑[DG](525nm) | 19W | DC24V |
|
|
