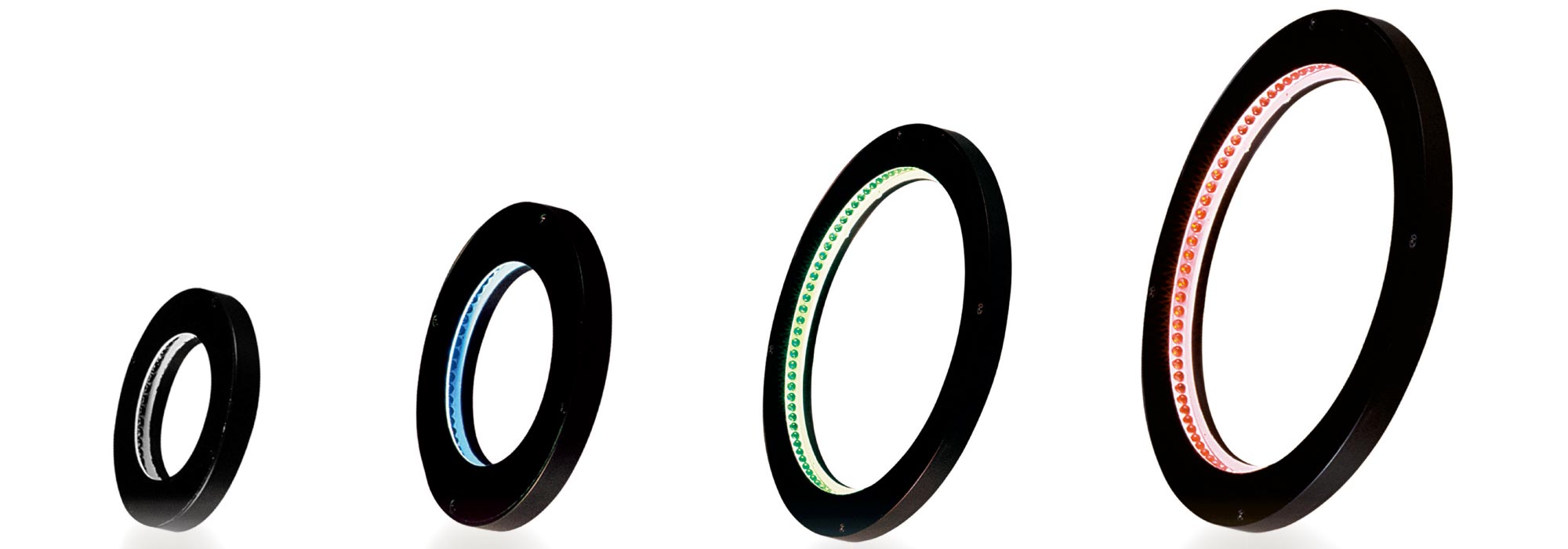

水平対向リング照明 IDRA-Tシリーズ
水平方向からの照射で凸凹を強調
砲弾型LED素子を真横に実装した水平対向リング照明。
ワークに真横から照射する事ができ、打痕や刻印検査、エッジ検査をする場合に有効。
拡散リングを後付け可能。またドーム照明と組み合わせての使用も可能。
効果

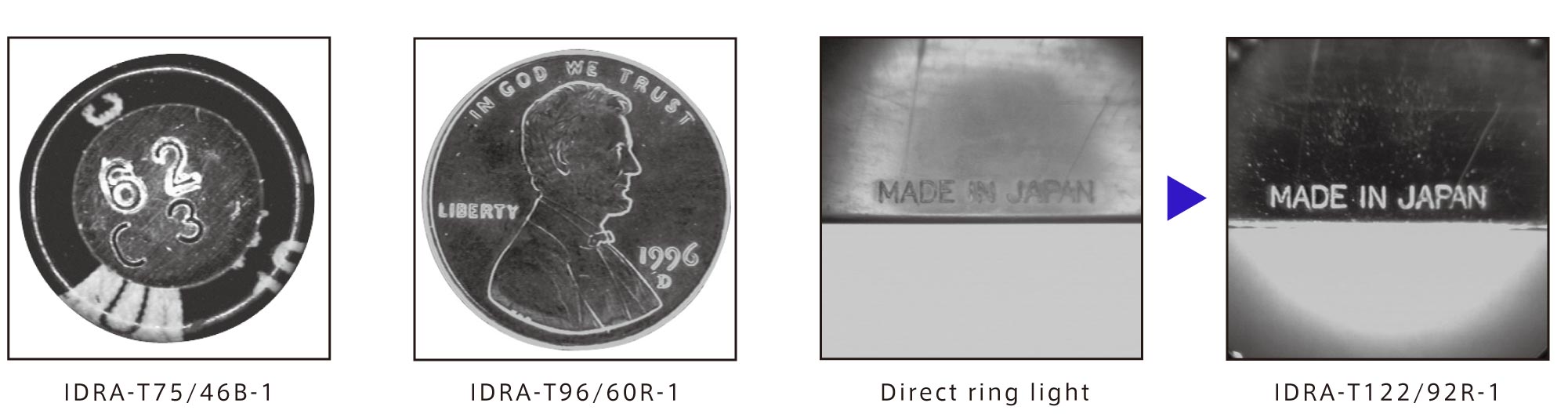

LEDが写り込むことなく刻印文字や表面の傷を検出できます。
ワーク面に対して至近距離からでも均一照射が 可能です。
測定機種：IDRA-T176/140DW-1
WD：10mm

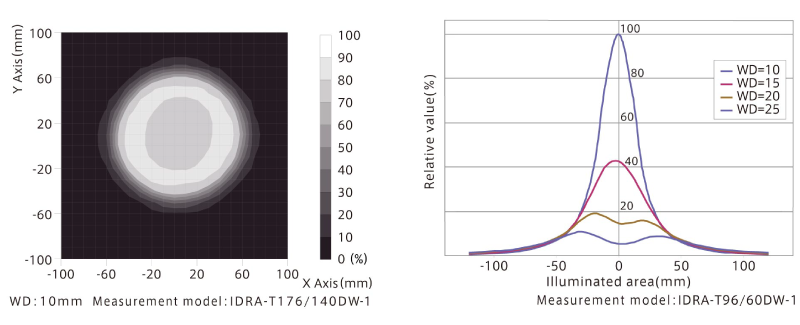

照度分布図（参考値）
WDの可変により、照射エリアがほぼ限定されます。
測定機種：IDRA-T96/60DW-1

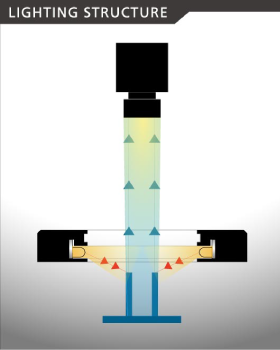

Lighting structure
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC12V | IDRA-T78/46R-1 | 赤[R](660nm) | 2.0W | DC12V |
|
|
|
| DC24V | IDRA-T78RHV-1 | 赤[R](660nm) | 2.0W | DC24V |
|
|
|
| DC12V | IDRA-T78/46B-1 | 青[B](470nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDRA-T78/46G-1 | 緑[G](525nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDRA-T78/46DW-1 | 白[DW](7000K) | 2.9W | DC12V |
|
|
|
| DC24V | IDRA-T78WHV-1 | 白[W](7000K) | 2.9W | DC24V |
|
|
|
| DC12V | IDRA-T78/46DR-1 | 赤[DR](635nm) | 2.4W | DC12V |
|
|
|
| DC12V | IDRA-T96/60R-1 | 赤[R](660nm) | 2.4W | DC12V |
|
|
|
| DC24V | IDRA-T96RHV-1 | 赤[R](660nm) | 2.4W | DC24V |
|
|
|
| DC12V | IDRA-T96/60B-1 | 青[B](470nm) | 3.6W | DC12V |
|
|
|
| DC12V | IDRA-T96/60G-1 | 緑[G](525nm) | 3.6W | DC12V |
|
|
|
| DC12V | IDRA-T96/60DW-1 | 白[DW](7000K) | 3.6W | DC12V |
|
|
|
| DC24V | IDRA-T96WHV-1 | 白[W](7000K) | 3.6W | DC24V |
|
|
|
| DC12V | IDRA-T96/60DR-1 | 赤[DR](635nm) | 3.6W | DC12V |
|
|
|
| DC24V | IDRA-T96BHV-1 | 青[B](470nm) | 3.6W | DC24V |
|
|
|
| DC12V | IDRA-T122/92R-1 | 赤[R](660nm) | 3.2W | DC12V |
|
|
|
| DC24V | IDRA-T122RHV-1 | 赤[R](660nm) | 2.9W | DC24V |
|
|
|
| DC12V | IDRA-T122/92B-1 | 青[B](470nm) | 4.7W | DC12V |
|
|
|
| DC12V | IDRA-T122/92G-1 | 緑[G](525nm) | 4.7W | DC12V |
|
|
|
| DC12V | IDRA-T122/92DW-1 | 白[DW](7000K) | 4.7W | DC12V |
|
|
|
| DC24V | IDRA-T122WHV-1 | 白[W](7000K) | 4.4W | DC24V |
|
|
|
| DC24V | IDRA-T122BHV-1 | 青[B](470nm) | 4.4W | DC24V |
|
|
|
| DC12V | IDRA-T122/92DR-1 | 赤[DR](635nm) | 4.2W | DC12V |
|
|
|
| DC12V | IDRA-T152/114R-1 | 赤[R](660nm) | 3.9W | DC12V |
|
|
|
| DC24V | IDRA-T152RHV-1 | 赤[R](660nm) | 3.9W | DC24V |
|
|
|
| DC12V | IDRA-T152/114B-1 | 青[B](470nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDRA-T152/114G-1 | 緑[G](525nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDRA-T152/114DW-1 | 白[DW](7000K) | 5.8W | DC12V |
|
|
|
| DC24V | IDRA-T152WHV-1 | 白[W](7000K) | 5.8W | DC24V |
|
|
|
| DC12V | IDRA-T152/114DR-1 | 赤[DR](635nm) | 5.4W | DC12V |
|
|
|
| DC24V | IDRA-T152BHV-1 | 青[B](470nm) | 5.8W | DC24V |
|
|
|
| DC12V | IDRA-T176/140R-1 | 赤[R](660nm) | 4.8W | DC12V |
|
|
|
| DC24V | IDRA-T176RHV-1 | 赤[R](660nm) | 4.8W | DC24V |
|
|
|
| DC12V | IDRA-T176/140B-1 | 青[B](470nm) | 7.2W | DC12V |
|
|
|
| DC12V | IDRA-T176/140G-1 | 緑[G](525nm) | 7.2W | DC12V |
|
|
|
| DC12V | IDRA-T176/140DW-1 | 白[DW](7000K) | 7.2W | DC12V |
|
|
|
| DC24V | IDRA-T176WHV-1 | 白[W](7000K) | 7.2W | DC24V |
|
|
|
| DC12V | IDRA-T176/140DR-1 | 赤[DR](635nm) | 7.2W | DC12V |
|
|
|
| DC24V | IDRA-T176BHV-1 | 青[B](470nm) | 7.2W | DC24V |
|
|
|
| DC12V | IDRA-T206/170R-1 | 赤[R](660nm) | 5.8W | DC12V |
|
|
|
| DC24V | IDRA-T206RHV-1 | 赤[R](660nm) | 5.8W | DC24V |
|
|
|
| DC12V | IDRA-T206/170B-1 | 青[B](470nm) | 8.7W | DC12V |
|
|
|
| DC12V | IDRA-T206/170G-1 | 緑[G](525nm) | 8.7W | DC12V |
|
|
|
| DC12V | IDRA-T206/170DW-1 | 白[DW](7000K) | 8.7W | DC12V |
|
|
|
| DC24V | IDRA-T206WHV-1 | 白[W](7000K) | 8.7W | DC24V |
|
|
|
| DC12V | IDRA-T206/170DR-1 | 赤[DR](635nm) | 8.4W | DC12V |
|
|
|
| DC24V | IDRA-T206BHV-1 | 青[B](470nm) | 8.7W | DC24V |
|
|
|
| DC12V | IDRA-T84/54R-1 | 赤[R](660nm) | 2.0W | DC12V |
|
|
|
| DC24V | IDRA-T84RHV-1 | 赤[R](660nm) | 2.0W | DC24V |
|
|
|
| DC12V | IDRA-T84/54B-1 | 青[B](470nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDRA-T84/54G-1 | 緑[G](525nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDRA-T84/54DW-1 | 白[DW](7000K) | 2.9W | DC12V |
|
|
|
| DC24V | IDRA-T84WHV-1 | 白[W](7000K) | 2.9W | DC24V |
|
|
|
| DC12V | IDRA-T84/54DR-1 | 赤[DR](635nm) | 3.0W | DC12V |
|
|
|
| DC12V | IDRA-T450/400DW-1 | 白[DW](7000K) | 17.3W | DC12V |
|
|
|
| DC12V | IDRA-T450/400R-1 | 赤[R](660nm) | 11.6W | DC12V |
|
|
|
| DC12V | IDRA-T450/400B-1 | 青[B](470nm) | 17.3W | DC12V |
|
|
|
| DC12V | IDRA-T450/400G-1 | 緑[G](525nm) | 17.3W | DC12V |
|
|
|
| DC24V | IDRA-T450WHV-1 | 白[W](7000K) | 17.3W | DC24V |
|
|
|
| DC24V | IDRA-T450RHV-1 | 赤[R](660nm) | 11.6W | DC24V |
|
|
|
| DC24V | IDRA-T450BHV-1 | 青[B](470nm) | 17.3W | DC24V |
|
|
|
| DC24V | IDRA-T450GHV-1 | 緑[G](525nm) | 17.3W | DC24V |
|
|
|
| DC24V | IDRA-T78BHV-1 | 青[B](470nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDRA-T78GHV-1 | 緑[G](525nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDRA-T78DRHV-1 | 赤[DR](635nm) | 2.4W | DC24V |
|
|
|
| DC24V | IDRA-T84BHV-1 | 青[B](470nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDRA-T84GHV-1 | 緑[G](525nm) | 2.9W | DC24V |
|
|
|
| DC12V | IDRA-T84/54AIR-850-1 | IR(850nm) | 2W | DC12V |
|
|
|
| DC24V | IDRA-T84DRHV-1 | 赤[DR](635nm) | 3.0W | DC24V |
|
|
|
| DC24V | IDRA-T96GHV-1 | 緑[G](525nm) | 3.6W | DC24V |
|
|
|
| DC24V | IDRA-T96DRHV-1 | 赤[DR](635nm) | 3.6W | DC24V |
|
|
|
| DC24V | IDRA-T122GHV-1 | 緑[G](525nm) | 4.4W | DC24V |
|
|
|
| DC24V | IDRA-T122DRHV-1 | 赤[DR](635nm) | 4.2W | DC24V |
|
|
|
| DC24V | IDRA-T152GHV-1 | 緑[G](525nm) | 5.8W | DC24V |
|
|
|
| DC24V | IDRA-T152DRHV-1 | 赤[DR](635nm) | 5.4W | DC24V |
|
|
|
| DC24V | IDRA-T176GHV-1 | 緑[G](525nm) | 7.2W | DC24V |
|
|
|
| DC12V | IDRA-T176/140AIR-850-1 | IR(850nm) | 4.8W | DC12V |
|
|
|
| DC24V | IDRA-T176DRHV-1 | 赤[DR](635nm) | 7.2W | DC24V |
|
|
|
| DC24V | IDRA-T206GHV-1 | 緑[G](525nm) | 8.7W | DC24V |
|
|
|
| DC24V | IDRA-T206DRHV-1 | 赤[DR](635nm) | 8.4W | DC24V |
|
|
|
| DC12V | IDRA-T450DRHV-1 | 赤[DR](635nm) | TBD | DC12V |
|
|
|
| DC24V | IDRA-T450/400DR-1 | 赤[DR](635nm) | 16.8W | DC24V |
|
|
