2024年12月20日生産終了→後継機：IDBB-SE series

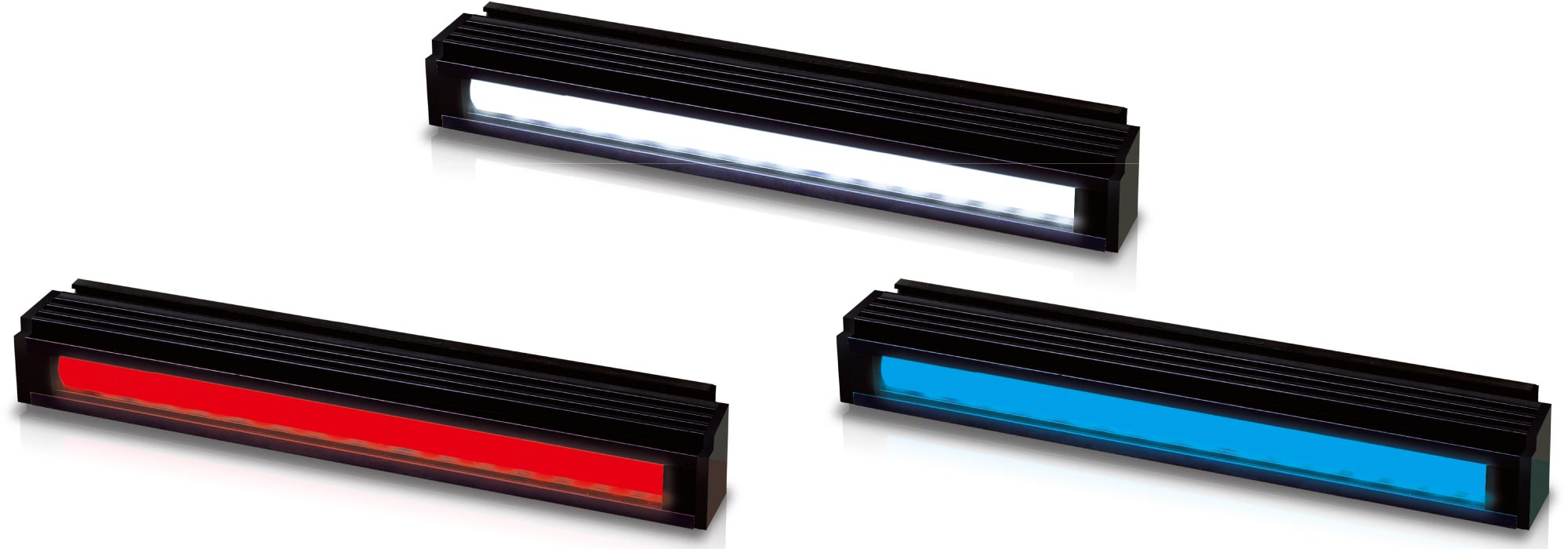

B’Cライン照明 IDBA-SEシリーズ
IDBA-LEシリーズの広角モデルと同等の光学設計
25mm×25mmのコンパクト設計。
可動式ナットの採用により取付冶具との要請が容易に。使用環境に合わせた設置が可能。
IP67防塵防水モデルの製作も可能。
| タイプ | 型 式 | その他 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|---|
| DC12V | IDBA-SE50W | 外寸 25 × 66 mm | 白[W](TBD) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100W | 外寸 25 × 116 mm | 白[W](TBD) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150W | 外寸 25 × 166 mm | 白[W](TBD) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200W | 外寸 25 × 216 mm | 白[W](TBD) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250W | 外寸 25 × 266 mm | 白[W](TBD) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300W | 外寸 25 × 316 mm | 白[W](TBD) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350W | 外寸 25 × 366 mm | 白[W](TBD) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400W | 外寸 25 × 416 mm | 白[W](TBD) | 28W | DC12V |
|
|
|
| DC12V | IDBA-SE50R | 外寸 25 × 66 mm | 赤[R](635nm) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100R | 外寸 25 × 116 mm | 赤[R](635nm) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150R | 外寸 25 × 166 mm | 赤[R](635nm) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200R | 外寸 25 × 216 mm | 赤[R](635nm) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250R | 外寸 25 × 266 mm | 赤[R](635nm) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300R | 外寸 25 × 316 mm | 赤[R](635nm) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350R | 外寸 25 × 366 mm | 赤[R](635nm) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400R | 外寸 25 × 416 mm | 赤[R](635nm) | 28W | DC12V |
|
|
|
| DC12V | IDBA-SE50B | 外寸 25 × 66 mm | 青[B](465nm) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100B | 外寸 25 × 116 mm | 青[B](465nm) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150B | 外寸 25 × 166 mm | 青[B](465nm) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200B | 外寸 25 × 216 mm | 青[B](465nm) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250B | 外寸 25 × 266 mm | 青[B](465nm) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300B | 外寸 25 × 316 mm | 青[B](465nm) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350B | 外寸 25 × 366 mm | 青[B](465nm) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400B | 外寸 25 × 416 mm | 青[B](465nm) | 28W | DC12V |
|
|
|
| DC12V | IDBA-SE50W-WP | 外寸 25 × 70 mm | 白[W](TBD) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100W-WP | 外寸 25 × 120 mm | 白[W](TBD) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150W-WP | 外寸 25 × 170 mm | 白[W](TBD) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200W-WP | 外寸 25 × 220 mm | 白[W](TBD) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250W-WP | 外寸 25 × 270 mm | 白[W](TBD) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300W-WP | 外寸 25 × 320 mm | 白[W](TBD) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350W-WP | 外寸 25 × 370 mm | 白[W](TBD) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400W-WP | 外寸 25 × 420 mm | 白[W](TBD) | 28W | DC12V |
|
|
|
| DC12V | IDBA-SE50R-WP | 外寸 25 × 70 mm | 赤[R](635nm) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100R-WP | 外寸 25 × 120 mm | 赤[R](635nm) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150R-WP | 外寸 25 × 170 mm | 赤[R](635nm) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200R-WP | 外寸 25 × 220 mm | 赤[R](635nm) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250R-WP | 外寸 25 × 270 mm | 赤[R](635nm) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300R-WP | 外寸 25 × 320 mm | 赤[R](635nm) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350R-WP | 外寸 25 × 370 mm | 赤[R](635nm) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400R-WP | 外寸 25 × 420 mm | 赤[R](635nm) | 28W | DC12V |
|
|
|
| DC12V | IDBA-SE50B-WP | 外寸 25 × 70 mm | 青[B](465nm) | 3.5W | DC12V |
|
|
|
| DC12V | IDBA-SE100B-WP | 外寸 25 × 120 mm | 青[B](465nm) | 7W | DC12V |
|
|
|
| DC12V | IDBA-SE150B-WP | 外寸 25 × 170 mm | 青[B](465nm) | 10.5W | DC12V |
|
|
|
| DC12V | IDBA-SE200B-WP | 外寸 25 × 220 mm | 青[B](465nm) | 14W | DC12V |
|
|
|
| DC12V | IDBA-SE250B-WP | 外寸 25 × 270 mm | 青[B](465nm) | 17.5W | DC12V |
|
|
|
| DC12V | IDBA-SE300B-WP | 外寸 25 × 320 mm | 青[B](465nm) | 21W | DC12V |
|
|
|
| DC12V | IDBA-SE350B-WP | 外寸 25 × 370 mm | 青[B](465nm) | 24.5W | DC12V |
|
|
|
| DC12V | IDBA-SE400B-WP | 外寸 25 × 420 mm | 青[B](465nm) | 28W | DC12V |
|
|
|
| DC24V | IDBA-SE100WHV | 外寸 25 × 116 mm | 白[W](TBD) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200WHV | 外寸 25 × 216 mm | 白[W](TBD) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300WHV | 外寸 25 × 316 mm | 白[W](TBD) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400WHV | 外寸 25 × 416 mm | 白[W](TBD) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500WHV | 外寸 25 × 516 mm | 白[W](TBD) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600WHV | 外寸 25 × 616 mm | 白[W](TBD) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700WHV | 外寸 25 × 716 mm | 白[W](TBD) | 49W | DC24V |
|
|
|
| DC24V | IDBA-SE800WHV | 外寸 25 × 816 mm | 白[W](TBD) | 56W | DC24V |
|
|
|
| DC24V | IDBA-SE100RHV | 外寸 25 × 116 mm | 赤[R](635nm) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200RHV | 外寸 25 × 216 mm | 赤[R](635nm) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300RHV | 外寸 25 × 316 mm | 赤[R](635nm) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400RHV | 外寸 25 × 416 mm | 赤[R](635nm) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500RHV | 外寸 25 × 516 mm | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600RHV | 外寸 25 × 616 mm | 赤[R](635nm) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700RHV | 外寸 25 × 716 mm | 赤[R](635nm) | 49W | DC24V |
|
|
|
| DC24V | IDBA-SE800RHV | 外寸 25 × 816 mm | 赤[R](635nm) | 56W | DC24V |
|
|
|
| DC24V | IDBA-SE100BHV | 外寸 25 × 116 mm | 青[B](465nm) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200BHV | 外寸 25 × 216 mm | 青[B](465nm) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300BHV | 外寸 25 × 316 mm | 青[B](465nm) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400BHV | 外寸 25 × 416 mm | 青[B](465nm) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500BHV | 外寸 25 × 516 mm | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600BHV | 外寸 25 × 616 mm | 青[B](465nm) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700BHV | 外寸 25 × 716 mm | 青[B](465nm) | 49W | DC24V |
|
|
|
| DC24V | IDBA-SE800BHV | 外寸 25 × 816 mm | 青[B](465nm) | 56W | DC24V |
|
|
|
| DC24V | IDBA-SE100WHV-WP | 外寸 25 × 120 mm | 白[W](TBD) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200WHV-WP | 外寸 25 × 220 mm | 白[W](TBD) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300WHV-WP | 外寸 25 × 320 mm | 白[W](TBD) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400WHV-WP | 外寸 25 × 420 mm | 白[W](TBD) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500WHV-WP | 外寸 25 × 520 mm | 白[W](TBD) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600WHV-WP | 外寸 25 × 620 mm | 白[W](TBD) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700WHV-WP | 外寸 25 × 720 mm | 白[W](TBD) | 49W | DC24V |
|
|
|
| DC24V | IDBA-SE800WHV-WP | 外寸 25 × 820 mm | 白[W](TBD) | 56W | DC24V |
|
|
|
| DC24V | IDBA-SE100RHV-WP | 外寸 25 × 120 mm | 赤[R](635nm) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200RHV-WP | 外寸 25 × 220 mm | 赤[R](635nm) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300RHV-WP | 外寸 25 × 320 mm | 赤[R](635nm) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400RHV-WP | 外寸 25 × 420 mm | 赤[R](635nm) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500RHV-WP | 外寸 25 × 520 mm | 赤[R](635nm) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600RHV-WP | 外寸 25 × 620 mm | 赤[R](635nm) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700RHV-WP | 外寸 25 × 720 mm | 赤[R](635nm) | 48W | DC24V |
|
|
|
| DC24V | IDBA-SE800RHV-WP | 外寸 25 × 820 mm | 赤[R](635nm) | 56W | DC24V |
|
|
|
| DC24V | IDBA-SE100BHV-WP | 外寸 25 × 120 mm | 青[B](465nm) | 7W | DC24V |
|
|
|
| DC24V | IDBA-SE200BHV-WP | 外寸 25 × 220 mm | 青[B](465nm) | 14W | DC24V |
|
|
|
| DC24V | IDBA-SE300BHV-WP | 外寸 25 × 320 mm | 青[B](465nm) | 21W | DC24V |
|
|
|
| DC24V | IDBA-SE400BHV-WP | 外寸 25 × 420 mm | 青[B](465nm) | 28W | DC24V |
|
|
|
| DC24V | IDBA-SE500BHV-WP | 外寸 25 × 520 mm | 青[B](465nm) | 35W | DC24V |
|
|
|
| DC24V | IDBA-SE600BHV-WP | 外寸 25 × 620 mm | 青[B](465nm) | 42W | DC24V |
|
|
|
| DC24V | IDBA-SE700BHV-WP | 外寸 25 × 720 mm | 青[B](465nm) | 49W | DC24V |
|
|
|
| DC24V | IDBA-SE800BHV-WP | 外寸 25 × 820 mm | 青[B](465nm) | 56W | DC24V |
|
|
