発光色：赤外(IR-850) 2022年12月27日生産終了
発光色：赤色(R)、青色(B)、緑色(G)、黄色(Y) 2020年12月25日生産終了
発光色：紫外(UV-400) 2020年4月10日生産終了
発光色：白色(W) 2016年4月28日生産終了
発光色：赤外(IR-940) 2013年12月4日生産終了
B’Cライン照明 IDBA-LEシリーズ
大型ワーク・長距離照射対応！
ワークサイズや照射距離に合わせ配光特性を選択可能。
発光面が従来より小さくなってもパワーLED＆光学系により飛躍的な光量UPを実現。

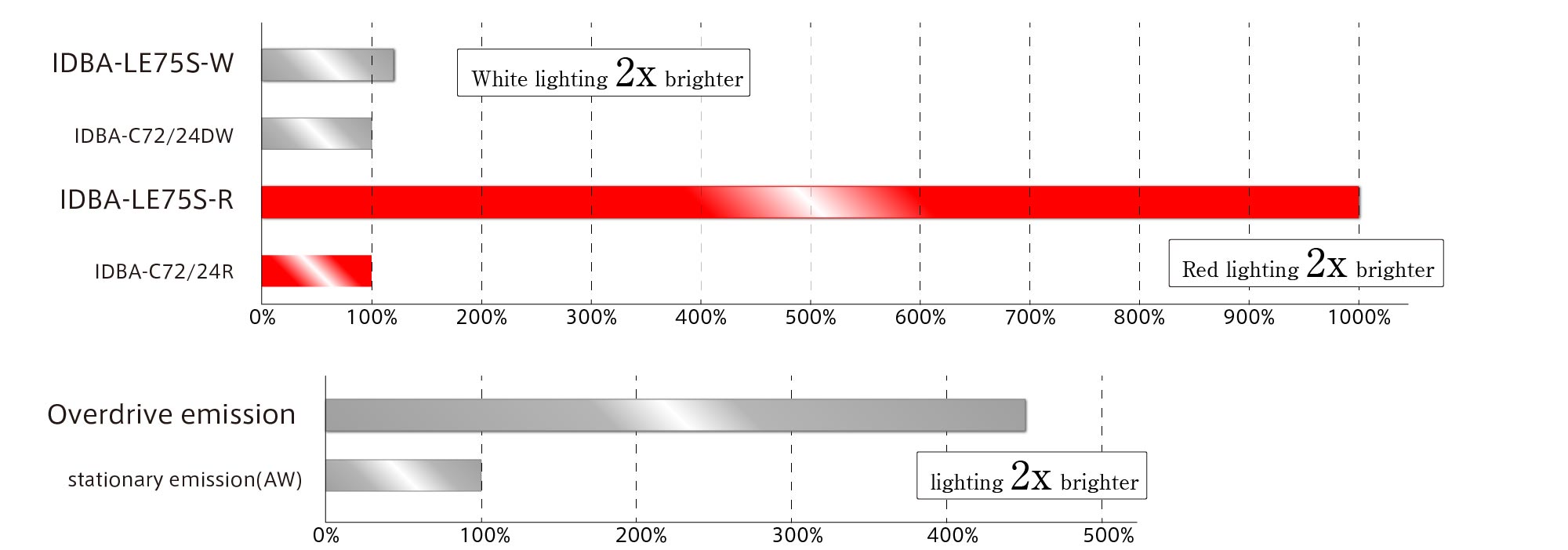

赤色は従来の10倍以上の光量。1500mm以上の長距離照射でも高照度を確保。
可動式ナットの採用により取付冶具との要請が容易に。使用環境に合わせた設置が可能。

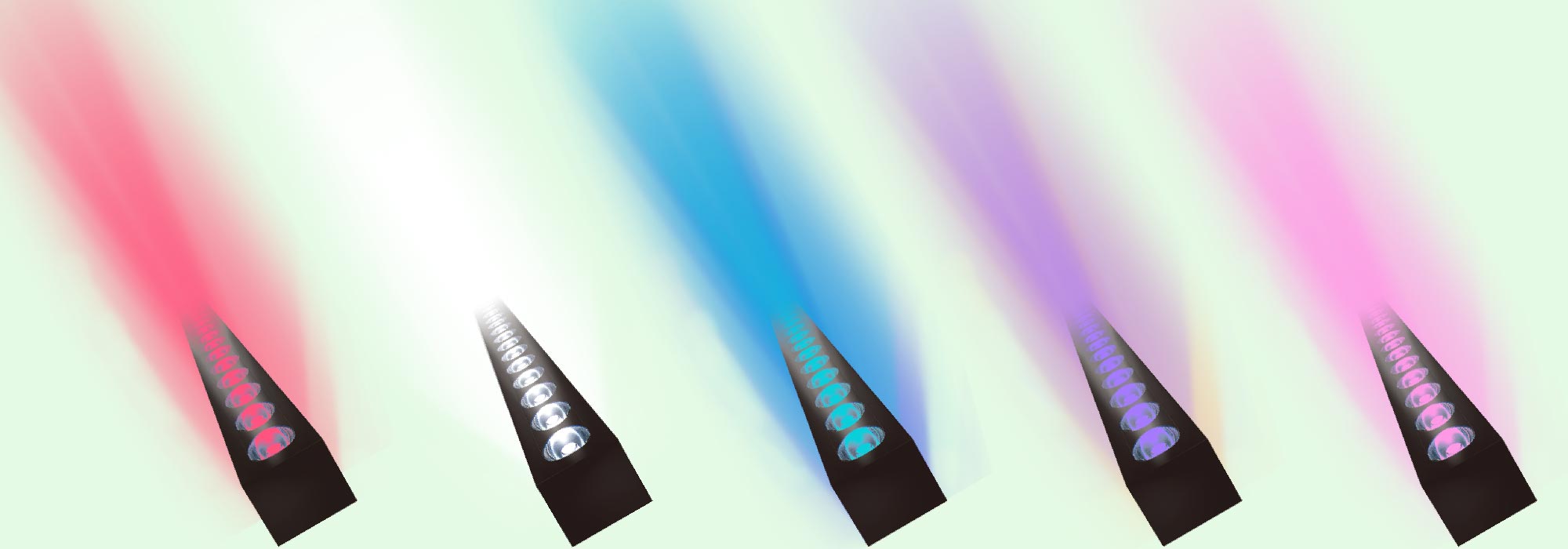

発光色は白・赤・青・緑・黄・赤外・紫外、照射タイプは高範囲を照射できる「Sタイプ」、長距離を照射できる「Lタイプ」をラインアップ。
特殊光学設計

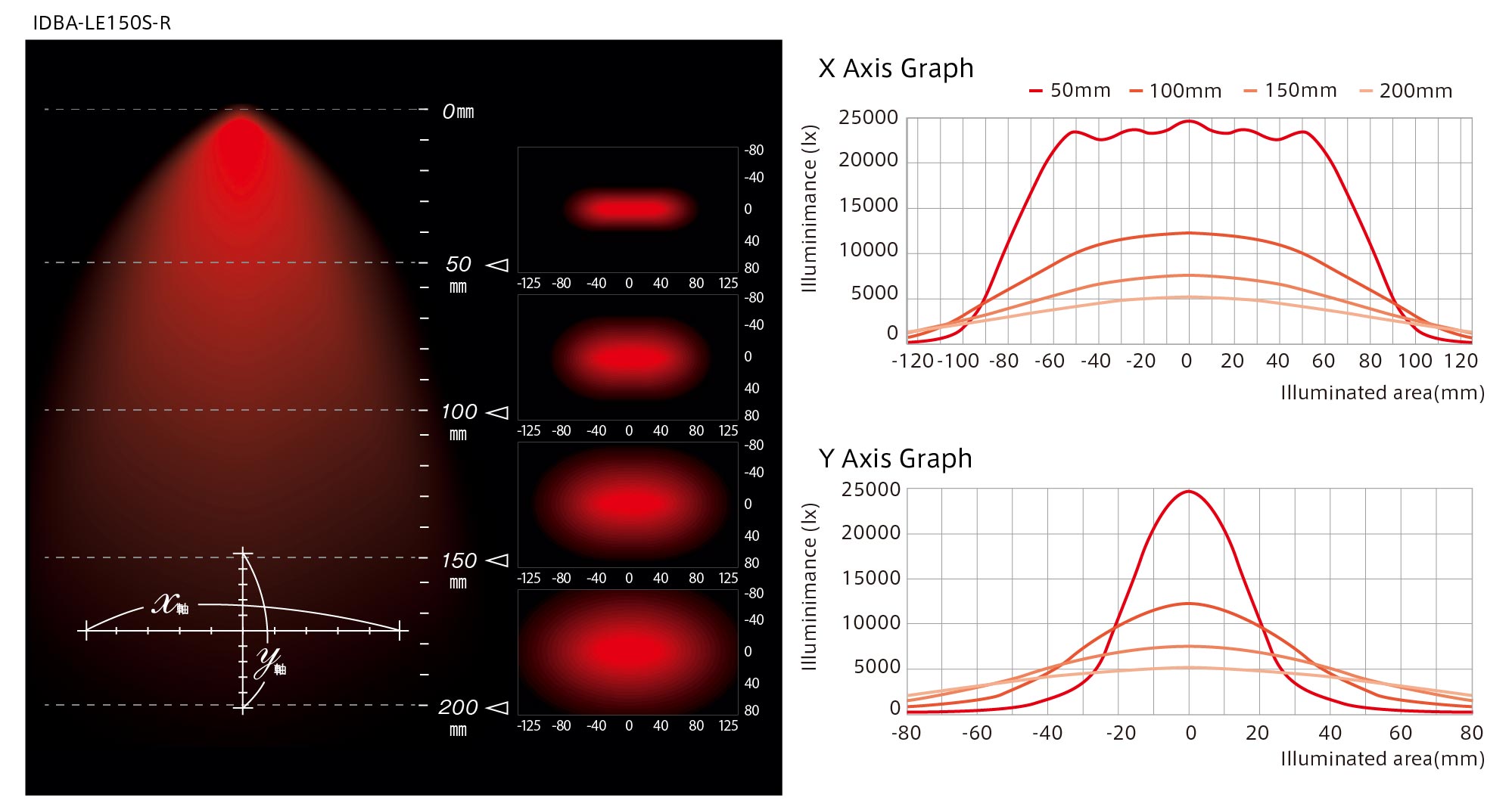

広角配光Sタイプ近距離で広範囲を照らすことが可能

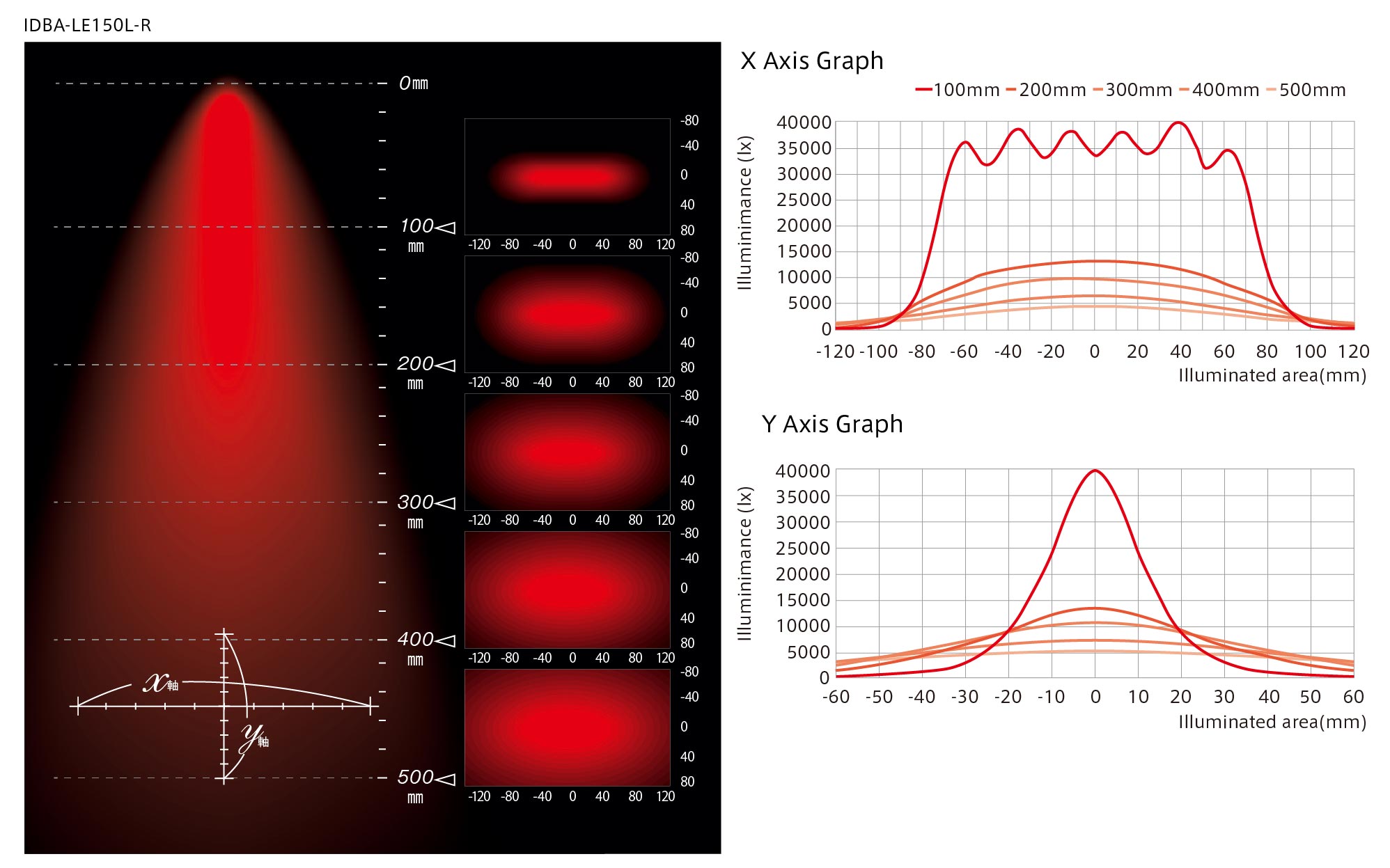

挟角配光Lタイプ長距離を明るく照らすことが可能

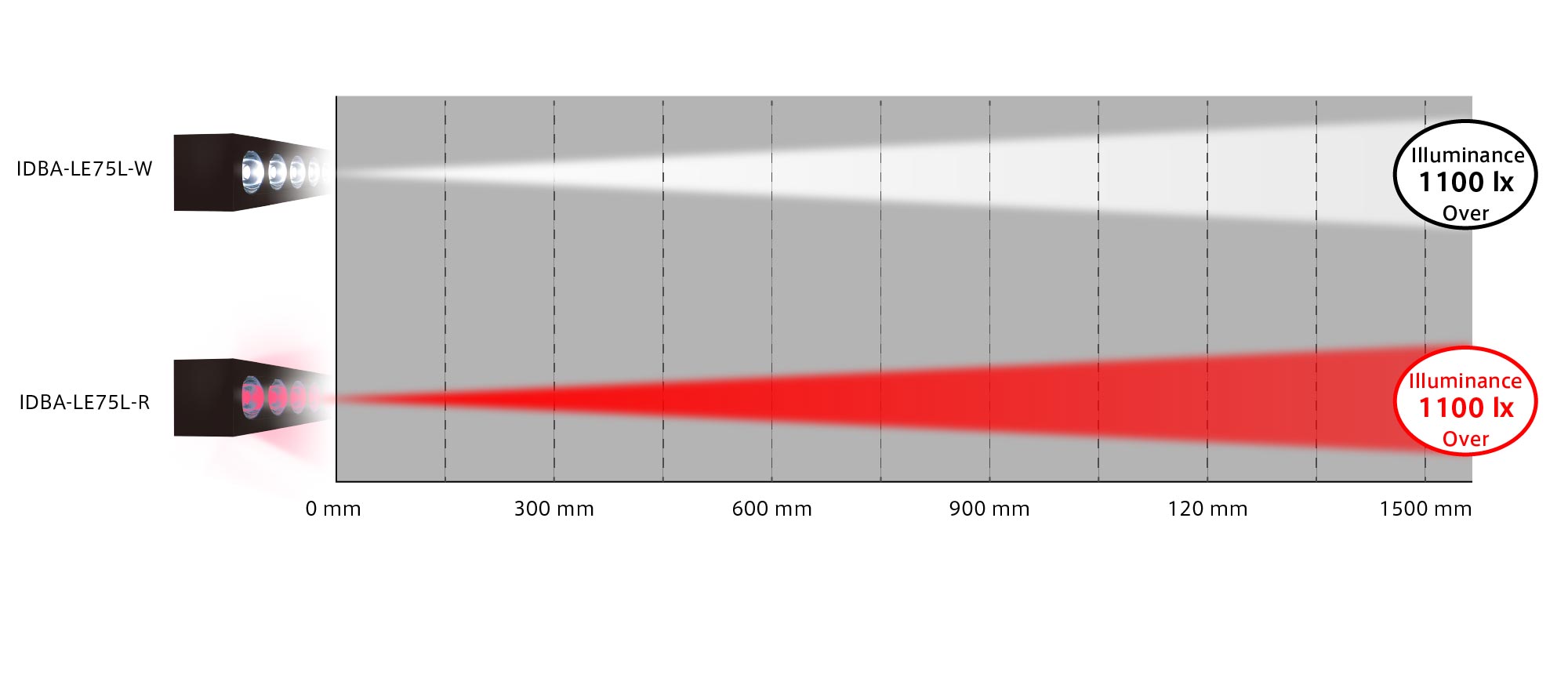

1500mm以上の長距離照射でも高照度を確保
長距離の照射でも高照度を実現することが可能。
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC12V | IDBA-LE75L-AW | 白[AW](TBD) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-AW | 白[AW](TBD) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-AW | 白[AW](TBD) | 9.0W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-AW | 白[AW](TBD) | 9.0W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-AW | 白[AW](TBD) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-AW | 白[AW](TBD) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-AW | 白[AW](TBD) | 18.0W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-AW | 白[AW](TBD) | 18.0W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-AW | 白[AW](TBD) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-AW | 白[AW](TBD) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-AW | 白[AW](TBD) | 27.0W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-AW | 白[AW](TBD) | 27.0W | DC12V |
|
|
|
| DC12V | IDBA-LE75L-AR | 赤[AR](635nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75L-AB | 青[AB](465nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75L-AIR-850 | IR(850nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75L-AUV-405 | UV(405nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-AR | 赤[AR](635nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-AB | 青[AB](465nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-AIR-850 | IR(850nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-AUV-405 | UV(405nm) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-AR | 赤[AR](635nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-AB | 青[AB](465nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-AIR-850 | IR(850nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-AUV-405 | UV(405nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-AR | 赤[AR](635nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-AB | 青[AB](465nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-AIR-850 | IR(850nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-AUV-405 | UV(405nm) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-AR | 赤[AR](635nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-AB | 青[AB](465nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-AIR-850 | IR(850nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-AUV-405 | UV(405nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-AR | 赤[AR](635nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-AB | 青[AB](465nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-AIR-850 | IR(850nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-AUV-405 | UV(405nm) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-AR | 赤[AR](635nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-AB | 青[AB](465nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-AIR-850 | IR(850nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-AUV-405 | UV(405nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-AR | 赤[AR](635nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-AB | 青[AB](465nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-AIR-850 | IR(850nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-AUV-405 | UV(405nm) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-AR | 赤[AR](635nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-AB | 青[AB](465nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-AIR-850 | IR(850nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-AUV-405 | UV(405nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-AR | 赤[AR](635nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-AB | 青[AB](465nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-AIR-850 | IR(850nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-AUV-405 | UV(405nm) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-AR | 赤[AR](635nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-AB | 青[AB](465nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-AIR-850 | IR(850nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-AUV-405 | UV(405nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-AR | 赤[AR](635nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-AB | 青[AB](465nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-AIR-850 | IR(850nm) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-AUV-405 | UV(405nm) | 27W | DC12V |
|
|
|
| DC24V | IDBA-LE600L-AWHV | 白[AW](TBD) | 36.0W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-AWHV | 白[AW](TBD) | 36.0W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-AWHV | 白[AW](TBD) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE750S-AWHV | 白[AW](TBD) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-AWHV | 白[AW](TBD) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-AWHV | 白[AW](TBD) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-AWHV | 白[AW](TBD) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-AWHV | 白[AW](TBD) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-AWHV | 白[AW](TBD) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-AWHV | 白[AW](TBD) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE600L-ARHV | 赤[AR](635nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600L-ABHV | 青[AB](465nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600L-AIR-850HV | IR(850nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600L-AUV-405HV | UV(405nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-ARHV | 赤[AR](635nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-ABHV | 青[AB](465nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-AIR-850HV | IR(850nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-AUV-405HV | UV(405nm) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-ARHV | 赤[AR](635nm) | 45W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-ABHV | 青[AB](465nm) | 45W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-AIR-850HV | IR(850nm) | 45W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-AUV-405HV | UV(405nm) | 45W | DC24V |
|
|
|
| DC24V | IDBA-LE750S-ARHV | 赤[AR](635nm) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE750S-ABHV | 青[AB](465nm) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE750S-AIR-850HV | IR(850nm) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE750S-AUV-405HV | UV(405nm) | 45.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-ARHV | 赤[AR](635nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-ABHV | 青[AB](465nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-AIR-850HV | IR(850nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-AUV-405HV | UV(405nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-ARHV | 赤[AR](635nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-ABHV | 青[AB](465nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-AIR-850HV | IR(850nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-AUV-405HV | UV(405nm) | 54.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-ARHV | 赤[AR](635nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-ABHV | 青[AB](465nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-AIR-850HV | IR(850nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-AUV-405HV | UV(405nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-ARHV | 赤[AR](635nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-ABHV | 青[AB](465nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-AIR-850HV | IR(850nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-AUV-405HV | UV(405nm) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-ARHV | 赤[AR](635nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-ABHV | 青[AB](465nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-AIR-850HV | IR(850nm) | 72W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-AUV-405HV | UV(405nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-ARHV | 赤[AR](635nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-ABHV | 青[AB](465nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-AIR-850HV | IR(850nm) | 72.0W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-AUV-405HV | UV(405nm) | 72.0W | DC24V |
|
|
|
| DC12V | IDBA-LE75L-DW | 白[DW](5700K) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE75S-DW | 白[DW](5700K) | 4.5W | DC12V |
|
|
|
| DC12V | IDBA-LE150L-DW | 白[DW](5700K) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE150S-DW | 白[DW](5700K) | 9W | DC12V |
|
|
|
| DC12V | IDBA-LE225L-DW | 白[DW](5700K) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE225S-DW | 白[DW](5700K) | 13.5W | DC12V |
|
|
|
| DC12V | IDBA-LE300L-DW | 白[DW](5700K) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE300S-DW | 白[DW](5700K) | 18W | DC12V |
|
|
|
| DC12V | IDBA-LE375L-DW | 白[DW](5700K) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE375S-DW | 白[DW](5700K) | 22.5W | DC12V |
|
|
|
| DC12V | IDBA-LE450L-DW | 白[DW](5700K) | 27W | DC12V |
|
|
|
| DC12V | IDBA-LE450S-DW | 白[DW](5700K) | 27W | DC12V |
|
|
|
| DC24V | IDBA-LE150L-ARHV | 赤[AR](635nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150L-ABHV | 青[AB](465nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150L-AIR-850HV | IR(850nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150L-AUV-405HV | UV(405nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150L-DWHV | 白[DW](5700K) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150S-ARHV | 赤[AR](635nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150S-ABHV | 青[AB](465nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150S-AIR-850HV | IR(850nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150S-AUV-405HV | UV(405nm) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE150S-DWHV | 白[DW](5700K) | 9W | DC24V |
|
|
|
| DC24V | IDBA-LE300L-ARHV | 赤[AR](635nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300L-ABHV | 青[AB](465nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300L-AIR-850HV | IR(850nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300L-AUV-405HV | UV(405nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300L-DWHV | 白[DW](5700K) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300S-ARHV | 赤[AR](635nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300S-ABHV | 青[AB](465nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300S-AIR-850HV | IR(850nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300S-AUV-405HV | UV(405nm) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE300S-DWHV | 白[DW](5700K) | 18W | DC24V |
|
|
|
| DC24V | IDBA-LE450L-ARHV | 赤[AR](635nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450L-ABHV | 青[AB](465nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450L-AIR-850HV | IR(850nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450L-AUV-405HV | UV(405nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450L-DWHV | 白[DW](5700K) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450S-ARHV | 赤[AR](635nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450S-ABHV | 青[AB](465nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450S-AIR-850HV | IR(850nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450S-AUV-405HV | UV(405nm) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE450S-DWHV | 白[DW](5700K) | 27W | DC24V |
|
|
|
| DC24V | IDBA-LE600S-DWHV | 白[DW](5700K) | 36W | DC24V |
|
|
|
| DC24V | IDBA-LE750L-DWHV | 白[DW](5700K) | 45W | DC24V |
|
|
|
| DC24V | IDBA-LE900L-DWHV | 白[DW](5700K) | 54W | DC24V |
|
|
|
| DC24V | IDBA-LE900S-DWHV | 白[DW](5700K) | 54W | DC24V |
|
|
|
| DC24V | IDBA-LE1050L-DWHV | 白[DW](5700K) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1050S-DWHV | 白[DW](5700K) | 63W | DC24V |
|
|
|
| DC24V | IDBA-LE1200L-DWHV | 白[DW](5700K) | 72W | DC24V |
|
|
|
| DC24V | IDBA-LE1200S-DWHV | 白[DW](5700K) | 72W | DC24V |
|
|
