発光色：紫外(UV-405) 2026年9月30日生産終了
発光色：赤色(R) 2025年3月31日生産終了→後継機：赤色(DR)

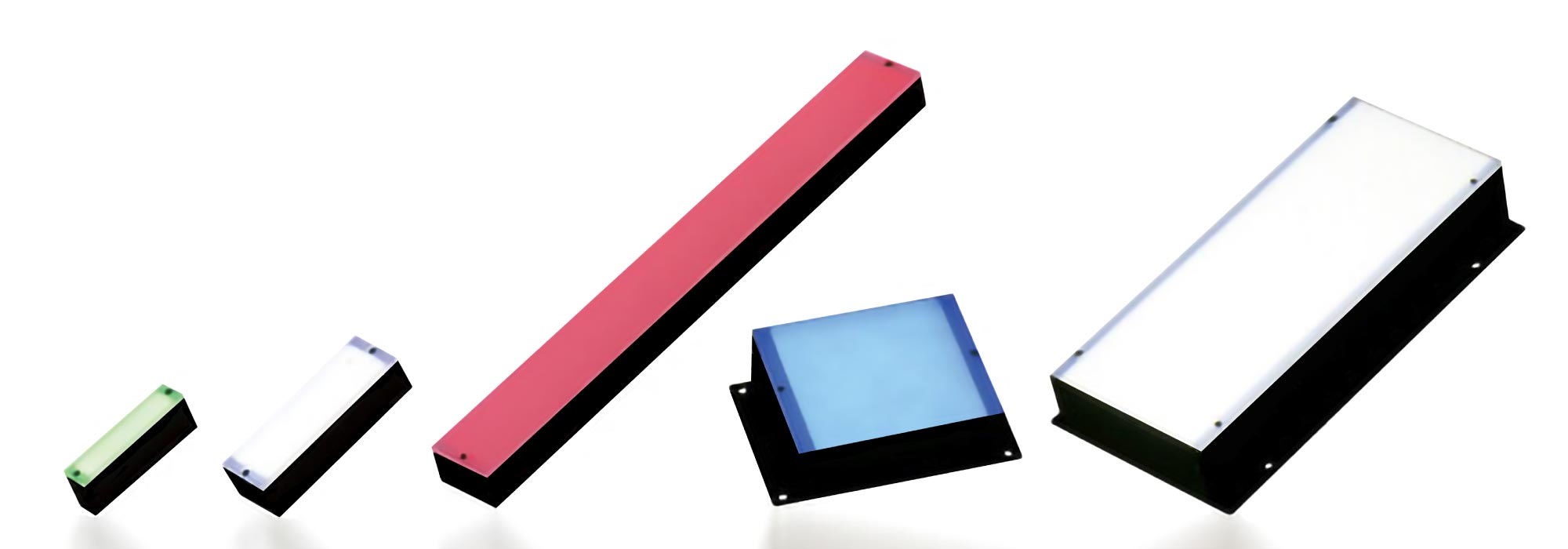

バー照明 IDBAシリーズ
斜光照明やバックライトに幅広く使用可能
砲弾型LED素子を平面上に高密度に実装した直射型面発光照明。
発行面が正方形や長方形のタイプや各サイズなど多数のバリエーションがあり、本掲載以外にも用意しております。
発光面の均一性がいる場合や光沢があるワークなどにはLED素子の映り込みを和らげる拡散版および偏光板をお使い下さい。
効果

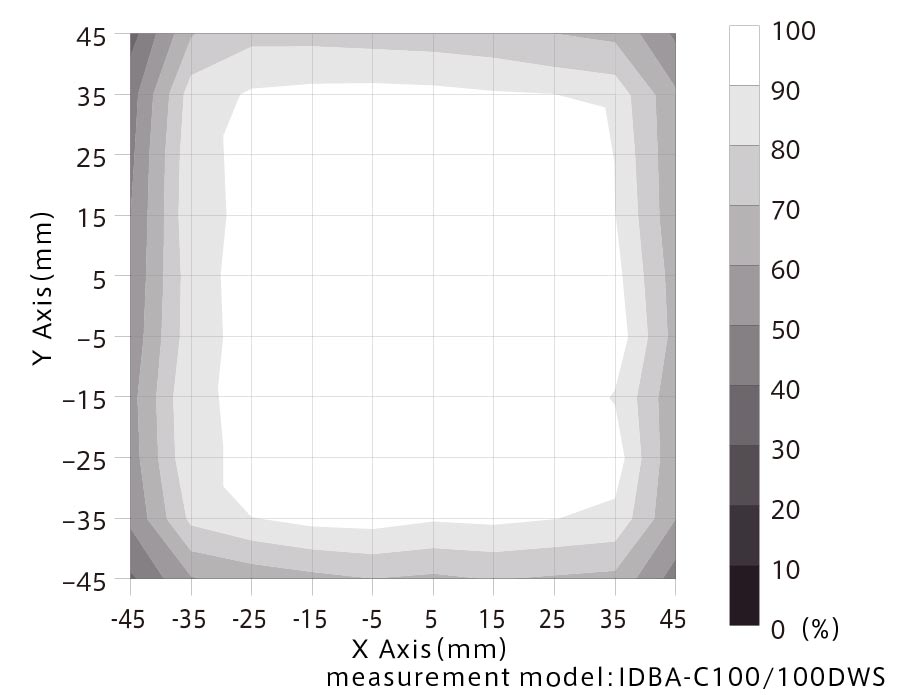

照度分布図（参考値）

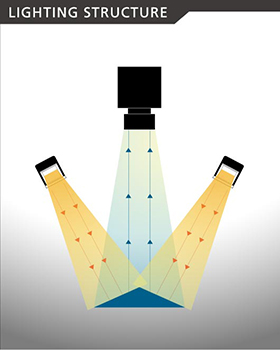

Lighting structure
| タイプ | 型 式 | 発光色 | 消費電力 | 入力電圧 | 外形図 DL | 3Dモデル DL | デモ機貸出 |
|---|---|---|---|---|---|---|---|
| DC12V | IDBA-C11/14R | 赤[R](660nm) | 0.3W | DC12V |
|
|
|
| DC12V | IDBA-C11/14RS-H21 | 赤[R](660nm) | 0.3W | DC12V |
|
|
|
| DC12V | IDBA-C11/14B | 青[B](470nm) | 0.4W | DC12V |
|
|
|
| DC12V | IDBA-C11/14BS-H21 | 青[B](470nm) | 0.4W | DC12V |
|
|
|
| DC12V | IDBA-C15/26RS | 赤[R](660nm) | 0.8W | DC12V |
|
|
|
| DC12V | IDBA-C15/26GS | 緑[G](525nm) | 1.1W | DC12V |
|
|
|
| DC12V | IDBA-C15/26BS | 青[B](470nm) | 1.1W | DC12V |
|
|
|
| DC12V | IDBA-C15/26DWS | 白[DW](TBD) | 1.1W | DC12V |
|
|
|
| DC12V | IDBA-C27/34R | 赤[R](660nm) | 2.0W | DC12V |
|
|
|
| DC12V | IDBA-C27/34G | 緑[G](525nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C27/34B | 青[B](470nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C27/34DW | 白[DW](7000K) | 2.9W | DC12V |
|
|
|
| DC24V | IDBA-C2734RHV | 赤[R](660nm) | 2.0W | DC24V |
|
|
|
| DC24V | IDBA-C2734WHV | 白[W](TBD) | 2.9W | DC24V |
|
|
|
| DC12V | IDBA-C70/75RS | 赤[R](660nm) | 6.8W | DC12V |
|
|
|
| DC12V | IDBA-C70/75GS | 緑[G](525nm) | 10.1W | DC12V |
|
|
|
| DC12V | IDBA-C70/75BS | 青[B](470nm) | 10.1W | DC12V |
|
|
|
| DC24V | IDBA-C7075RHVS | 赤[R](660nm) | 6.8W | DC24V |
|
|
|
| DC12V | IDBA-C25/25RS | 赤[R](660nm) | 1.5W | DC12V |
|
|
|
| DC12V | IDBA-C25/25GS | 緑[G](525nm) | 2.2W | DC12V |
|
|
|
| DC12V | IDBA-C25/25BS | 青[B](470nm) | 2.2W | DC12V |
|
|
|
| DC12V | IDBA-C25/25DWS | 白[DW](7000K) | 2.2W | DC12V |
|
|
|
| DC24V | IDBA-C2525RHVS | 白[R](TBD) | 1.5W | DC24V |
|
|
|
| DC12V | IDBA-C50/15R | 赤[R](660nm) | 1.5W | DC12V |
|
|
|
| DC12V | IDBA-C50/15G | 緑[G](525nm) | 2.2W | DC12V |
|
|
|
| DC12V | IDBA-C50/15B | 青[B](470nm) | 2.2W | DC12V |
|
|
|
| DC12V | IDBA-C100/11R | 赤[R](660nm) | 2.0W | DC12V |
|
|
|
| DC12V | IDBA-C100/11G | 緑[G](525nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C100/11B | 青[B](470nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C100/11DW | 白[DW](7000K) | 2.9W | DC12V |
|
|
|
| DC24V | IDBA-C10011RHV | 赤[R](660nm) | 2.0W | DC24V |
|
|
|
| DC12V | IDBA-C100/15R | 赤[R](660nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C100/15G | 緑[G](525nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C100/15B | 青[B](470nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C100/15DW | 白[DW](7000K) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C140/11R | 赤[R](660nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C140/11G | 緑[G](525nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C140/11B | 青[B](470nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C140/11DW | 白[DW](7000K) | 4.4W | DC12V |
|
|
|
| DC24V | IDBA-C14011RHV | 赤[R](660nm) | 3.4W | DC24V |
|
|
|
| DC24V | IDBA-C14011WHV | 白[W](TBD) | 5.1W | DC24V |
|
|
|
| DC12V | IDBA-C132/15R | 赤[R](660nm) | 3.9W | DC12V |
|
|
|
| DC12V | IDBA-C132/15G | 緑[G](525nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDBA-C132/15B | 青[B](470nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDBA-C72/24R | 赤[R](660nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C72/24G | 緑[G](525nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C72/24B | 青[B](470nm) | 4.4W | DC12V |
|
|
|
| DC12V | IDBA-C50/50RS | 赤[R](660nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDBA-C50/50BS | 青[B](470nm) | 5.4W | DC12V |
|
|
|
| DC12V | IDBA-C50/50GS | 緑[G](525nm) | 5.4W | DC12V |
|
|
|
| DC12V | IDBA-C15/200RS | 赤[R](660nm) | 6.0W | DC12V |
|
|
|
| DC12V | IDBA-C15/200BS | 青[B](470nm) | 8.9W | DC12V |
|
|
|
| DC12V | IDBA-C15/200DWS | 白[DW](TBD) | 8.9W | DC12V |
|
|
|
| DC12V | IDBA-C185/30RS | 赤[R](660nm) | 8.7W | DC12V |
|
|
|
| DC12V | IDBA-C185/30BS | 青[B](470nm) | 13.0W | DC12V |
|
|
|
| DC24V | IDBA-C18530RHVS | 赤[R](660nm) | 8.7W | DC24V |
|
|
|
| DC12V | IDBA-C185/30DWS | 白[DW](7000K) | 13.0W | DC12V |
|
|
|
| DC12V | IDBA-C300/24RS | 赤[R](660nm) | 17.1W | DC12V |
|
|
|
| DC12V | IDBA-C300/24BS | 青[B](470nm) | 25.6W | DC12V |
|
|
|
| DC24V | IDBA-C30024RHVS | 赤[R](660nm) | 16.8W | DC24V |
|
|
|
| DC12V | IDBA-C300/24DWS | 白[DW](7000K) | 25.6W | DC12V |
|
|
|
| DC24V | IDBA-C30024WHVS | 白[W](TBD) | 25.2W | DC24V |
|
|
|
| DC12V | IDBA-C100/100RS | 赤[R](660nm) | 13.7W | DC12V |
|
|
|
| DC12V | IDBA-C100/100BS | 青[B](470nm) | 20.6W | DC12V |
|
|
|
| DC12V | IDBA-C100/100GS | 緑[G](525nm) | 20.6W | DC12V |
|
|
|
| DC12V | IDBA-C100/100DWS | 白[DW](7000K) | 20.6W | DC12V |
|
|
|
| DC24V | IDBA-C100100RHVS | 白[R](TBD) | 13.0W | DC24V |
|
|
|
| DC24V | IDBA-C100100WHVS | 白[W](TBD) | 19.5W | DC24V |
|
|
|
| DC12V | IDBA-C100/100DRS | 赤[DR](635nm) | 20.4W | DC12V |
|
|
|
| DC24V | IDBA-C5015RHV | 赤[R](660nm) | 1.5W | DC24V |
|
|
|
| DC12V | IDBA-C50/15DW | 白[DW](7000K) | 2.2W | DC12V |
|
|
|
| DC24V | IDBA-C5015WHV | 白[W](7000K) | 2.2W | DC24V |
|
|
|
| DC24V | IDBA-C5050RHVS | 赤[R](660nm) | 5.8W | DC24V |
|
|
|
| DC12V | IDBA-C50/50DWS | 白[DW](7000K) | 5.4W | DC12V |
|
|
|
| DC24V | IDBA-C5050WHVS | 白[W](7000K) | 5.4W | DC24V |
|
|
|
| DC12V | IDBA-C50/50AIR-850S | IR(850nm) | 3.6W | DC12V |
|
|
|
| DC12V | IDBA-C50/15AIR-850 | IR(850nm) | 1.5W | DC12V |
|
|
|
| DC24V | IDBA-C5015AIRHV-850 | IR(850nm) | 1.5W | DC24V |
|
|
|
| DC12V | IDBA-C100/15DR | 赤[DR](635nm) | 4.2W | DC12V |
|
|
|
| DC12V | IDBA-C100/15IR-1450 | IR(1450nm) | 3.4W | DC12V |
|
|
|
| DC12V | IDBA-C100/15IR-1200 | IR(1200nm) | 3.4W | DC12V |
|
|
|
| DC12V | IDBA-C72/24DW | 白[DW](7000K) | 4.4W | DC12V |
|
|
|
| DC24V | IDBA-C18530DRHVS | 赤[DR](635nm) | 13.2W | DC24V |
|
|
|
| DC24V | IDBA-C7224RHV | 赤[R](660nm) | 4.4W | DC24V |
|
|
|
| DC24V | IDBA-C7224WHV | 白[W](TBD) | 5.1W | DC24V |
|
|
|
| DC12V | IDBA-C72/24DR | 赤[DR](635nm) | 5.4W | DC12V |
|
|
|
| DC12V | IDBA-C11/14DW | 白[DW](7000K) | 0.4W | DC12V |
|
|
|
| DC12V | IDBA-C11/14DWS-H21 | 白[DW](TBD) | 0.4W | DC12V |
|
|
|
| DC12V | IDBA-C11/14GS-H21 | 緑[G](525nm) | 0.4W | DC12V |
|
|
|
| DC12V | IDBA-C11/14DR | 赤[DR](635nm) | 0.3W | DC12V |
|
|
|
| DC12V | IDBA-C11/14DRS-H21 | 赤[DR](635nm) | 0.3W | DC12V |
|
|
|
| DC12V | IDBA-C11/14G | 緑[G](525nm) | 0.4W | DC12V |
|
|
|
| DC24V | IDBA-C10015RHV | 赤[R](660nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDBA-C10015WHV | 白[W](TBD) | 4.4W | DC24V |
|
|
|
| DC24V | IDBA-C10015BHV | 青[B](470nm) | 4.4W | DC24V |
|
|
|
| DC24V | IDBA-C10015GHV | 緑[G](525nm) | 4.4W | DC24V |
|
|
|
| DC24V | IDBA-C10015DRHV | 赤[DR](635nm) | 4.2W | DC24V |
|
|
|
| DC24V | IDBA-C7224BHV | 青[B](470nm) | 5.1W | DC24V |
|
|
|
| DC24V | IDBA-C7224GHV | 緑[G](525nm) | 5.1W | DC24V |
|
|
|
| DC12V | IDBA-C72/24AIR-850 | IR(850nm) | 2.8W | DC12V |
|
|
|
| DC24V | IDBA-C7224AIRHV-850 | IR(850nm) | 2.8W | DC24V |
|
|
|
| DC24V | IDBA-C7224DRHV | 赤[DR](635nm) | 5.4W | DC24V |
|
|
|
| DC12V | IDBA-C132/15DW | 白[DW](7000K) | 5.8W | DC12V |
|
|
|
| DC24V | IDBA-C13215RHV | 赤[R](660nm) | 3.9W | DC24V |
|
|
|
| DC24V | IDBA-C13215WHV | 白[W](TBD) | 5.8W | DC24V |
|
|
|
| DC12V | IDBA-C132/15DR | 赤[DR](635nm) | 5.4W | DC12V |
|
|
|
| DC24V | IDBA-C13215BHV | 青[B](470nm) | 5.8W | DC24V |
|
|
|
| DC24V | IDBA-C13215GHV | 緑[G](525nm) | 5.8W | DC24V |
|
|
|
| DC12V | IDBA-C132/15AIR-850 | IR(850nm) | 3.9W | DC12V |
|
|
|
| DC12V | IDBA-C70/75DWS | 白[DW](7000K) | 10.1W | DC12V |
|
|
|
| DC24V | IDBA-C7075WHVS | 白[W](TBD) | 10.1W | DC24V |
|
|
|
| DC12V | IDBA-C70/75DRS | 赤[DR](635nm) | 10.2W | DC12V |
|
|
|
| DC24V | IDBA-C7075BHVS | 青[B](470nm) | 10.1W | DC24V |
|
|
|
| DC24V | IDBA-C7075GHVS | 緑[G](525nm) | 10.1W | DC24V |
|
|
|
| DC24V | IDBA-C7075DRHVS | 赤[DR](635nm) | TBD | DC24V |
|
|
|
| DC12V | IDBA-C11/14AIR-850 | IR(850nm) | 0.3W | DC12V |
|
|
|
| DC12V | IDBA-C15/26DRS | 赤[DR](635nm) | 0.6W | DC12V |
|
|
|
| DC24V | IDBA-C15200RHVS | 白[R](TBD) | 5.8W | DC24V |
|
|
|
| DC24V | IDBA-C15200WHVS | 白[W](TBD) | 8.7W | DC24V |
|
|
|
| DC12V | IDBA-C15/200GS | 緑[G](525nm) | 8.9W | DC12V |
|
|
|
| DC24V | IDBA-C15200BHVS | 青[B](470nm) | 8.7W | DC24V |
|
|
|
| DC24V | IDBA-C15200GHVS | 緑[G](525nm) | 8.7W | DC24V |
|
|
|
| DC24V | IDBA-C15200DRHVS | 赤[DR](635nm) | TBD | DC24V |
|
|
|
| DC24V | IDBA-C1526RHVS | 白[R](TBD) | 1.0W | DC24V |
|
|
|
| DC24V | IDBA-C1526WHVS | 白[W](TBD) | 1.1W | DC24V |
|
|
|
| DC24V | IDBA-C1526BHVS | 青[B](470nm) | 1.1W | DC24V |
|
|
|
| DC24V | IDBA-C1526GHVS | 緑[G](525nm) | 1.1W | DC24V |
|
|
|
| DC24V | IDBA-C1526DRHVS | 赤[DR](635nm) | 0.6W | DC24V |
|
|
|
| DC12V | IDBA-C15/26AIR-850S | IR(850nm) | 0.8W | DC12V |
|
|
|
| DC24V | IDBA-C1526AIRHV-850S | IR(850nm) | 1.0W | DC24V |
|
|
|
| DC24V | IDBA-C10011WHV | 白[W](TBD) | 2.9W | DC24V |
|
|
|
| DC12V | IDBA-C100/11DR | 赤[DR](635nm) | 2.4W | DC12V |
|
|
|
| DC24V | IDBA-C10011BHV | 青[B](470nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDBA-C10011GHV | 緑[G](525nm) | 2.9W | DC24V |
|
|
|
| DC12V | IDBA-C100/11UV-405NR | UV(405nm) | 3.5W | DC12V |
|
|
|
| DC24V | IDBA-C18530WHVS | 白[W](TBD) | 13.0W | DC24V |
|
|
|
| DC12V | IDBA-C185/30GS | 緑[G](525nm) | 13.0W | DC12V |
|
|
|
| DC12V | IDBA-C185/30DRS | 赤[DR](635nm) | 13.2W | DC12V |
|
|
|
| DC24V | IDBA-C18530BHVS | 青[B](470nm) | 13.0W | DC24V |
|
|
|
| DC24V | IDBA-C18530GHVS | 緑[G](525nm) | 13.0W | DC24V |
|
|
|
| DC12V | IDBA-C185/30AIR-850S | IR(850nm) | 8.7W | DC12V |
|
|
|
| DC24V | IDBA-C2525WHVS | 白[W](TBD) | 2.2W | DC24V |
|
|
|
| DC12V | IDBA-C25/25DRS | 赤[DR](635nm) | 1.8W | DC12V |
|
|
|
| DC24V | IDBA-C2525BHVS | 青[B](470nm) | 2.2W | DC24V |
|
|
|
| DC24V | IDBA-C2525GHVS | 緑[G](525nm) | 2.2W | DC24V |
|
|
|
| DC24V | IDBA-C5050DRHVS | 赤[DR](635nm) | 6.4W | DC24V |
|
|
|
| DC12V | IDBA-C50/50DRS | 赤[DR](635nm) | 6.4W | DC12V |
|
|
|
| DC24V | IDBA-C5050BHVS | 青[B](470nm) | 5.4W | DC24V |
|
|
|
| DC24V | IDBA-C5050GHVS | 緑[G](525nm) | 5.4W | DC24V |
|
|
|
| DC12V | IDBA-C50/50UV-405NR | UV(405nm) | 6.5W | DC12V |
|
|
|
| DC12V | IDBA-C300/24DRS | 赤[DR](635nm) | 20.2W | DC12V |
|
|
|
| DC12V | IDBA-C300/24GS | 緑[G](525nm) | 25.6W | DC12V |
|
|
|
| DC24V | IDBA-C30024BHVS | 青[B](470nm) | 25.2W | DC24V |
|
|
|
| DC24V | IDBA-C30024GHVS | 緑[G](525nm) | 25.2W | DC24V |
|
|
|
| DC24V | IDBA-C30024DRHVS | 赤[DR](635nm) | 16.6W | DC24V |
|
|
|
| DC12V | IDBA-C27/34DR | 赤[DR](635nm) | 2.4W | DC12V |
|
|
|
| DC24V | IDBA-C2734BHV | 青[B](470nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDBA-C2734GHV | 緑[G](525nm) | 2.9W | DC24V |
|
|
|
| DC24V | IDBA-C2734DRHV | 赤[DR](635nm) | 2.4W | DC24V |
|
|
|
| DC12V | IDBA-C27/34UV-405NR | UV(405nm) | 3.2W | DC12V |
|
|
|
| DC12V | IDBA-C15/200DRS | 赤[DR](635nm) | 8.4W | DC12V |
|
|
|
| DC12V | IDBA-C15/200UV-405NR | UV(405nm) | 11.8W | DC12V |
|
|
|
| DC12V | IDBA-C15/200AIR-850S | IR(850nm) | 5.8W | DC12V |
|
|
|
| DC12V | IDBA-C50/15DR | 赤[DR](635nm) | 1.8W | DC12V |
|
|
|
| DC24V | IDBA-C5015BHV | 青[B](470nm) | 2.2W | DC24V |
|
|
|
| DC24V | IDBA-C5015GHV | 緑[G](525nm) | 2.2W | DC24V |
|
|
|
| DC24V | IDBA-C5015DRHV | 赤[DR](635nm) | 1.8W | DC24V |
|
|
|
| DC12V | IDBA-C50/15UV-405NR | UV(405nm) | 2.9W | DC12V |
|
|
|
| DC12V | IDBA-C140/11DR | 赤[DR](635nm) | 4.2W | DC12V |
|
|
|
| DC24V | IDBA-C14011BHV | 青[B](470nm) | 6.8W | DC24V |
|
|
|
| DC24V | IDBA-C14011GHV | 緑[G](525nm) | 6.8W | DC24V |
|
|
|
| DC24V | IDBA-C100100BHVS | 青[B](470nm) | 19.5W | DC24V |
|
|
|
| DC24V | IDBA-C100100GHVS | 緑[G](525nm) | 19.5W | DC24V |
|
|
|
| DC24V | IDBA-C100100DRHVS | 赤[DR](635nm) | 18W | DC24V |
|
|
|
| DC12V | IDBA-C100/100AIR-850S | IR(850nm) | 13.7W | DC12V |
|
|
|
| DC12V | IDBA-C50/15IR-1450 | IR(1450nm) | 1.5W | DC12V |
|
|
|
| DC12V | IDBA-C50/15IR-1200 | IR(1200nm) | 1.5W | DC12V |
|
|
|
| DC12V | IDBA-C50/50IR-1450S-C1 | IR(1450nm) | 6.8W | DC12V |
|
|
|
| DC12V | IDBA-C50/50IR-1200S | IR(1200nm) | 6.8W | DC12V |
|
|
|
| DC24V | IDBA-4318UVHV-280-P1 | UV(280nm) | 4.5W | DC24V |
|
|
